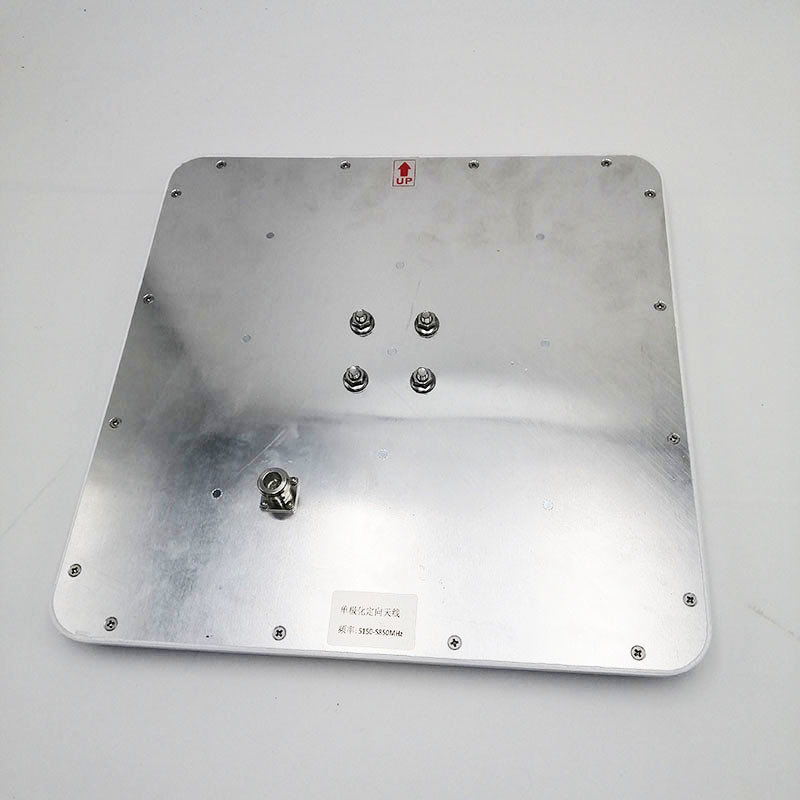

5.8G Wifi Directional Antenna Outdoor 5150-5850M 21dBi Single-Polarization 305x305x25mm

Name: 5.8G Wifi Directional Antenna Outdoor 5150-5850M 21dBi Single-Polarization 305x305x25mm
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10972-B
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10972-B

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              directional antenna for wifi, wifi directional antenna, wifi directional antenna outdoor


Frequency:	5150-5850MHz	VSWR:	<2.0
Peak Gain:	21dBi	Impedance:	50

Frequency:	5150-5850MHz
VSWR:	<2.0
Peak Gain:	21dBi
Impedance:	50

Description

5.8G Wifi Directional Antenna Outdoor 5150-5850M 21dBi Single-Polarization 305x305x25mm

5.8G 5150-5850M wifi 21dBi single-polarization directional antenna 305x305x25mm

1. Specification

A. Electrical Characteristics
Frequency	5150-5850MHz
S.W.R.	<= 2.0
Antenna Gain	21dBi
Polarization	V
Horizontal Beamwidth	12±3°
Vertical Beamwidth	12±3°
F/B	>27dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	30530525mm
Radome material	ABS
Weight	1.2Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
5.8G Wifi Directional Antenna Outdoor 5150-5850M 21dBi Single-Polarization 305x305x25mm 0

2.2 Total Efficiency & Gain:

Port 1(H)
Frequency(MHz)	Gain(dBi)
5150	20.4
5200	20.7
5250	21.1
5300	21.0
5350	21.1
5400	21.1
5450	21.2
5500	21.9
5550	21.9
5600	21.7
5650	21.4
5700	20.2
5750	19.4
5800	20.4
5850	20.5

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
5150MHz
5500MHz
5850MHz
