5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm
5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm
5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm
5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm
5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm
5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm

5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10972-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

21dBi directional antenna

,

5150-5850M directional antenna

,

5.8 directional antenna

Frequency:
5150-5850MHz
VSWR:
<2.0
Peak Gain:
21dBi
Impedance:
50
Frequency:
5150-5850MHz
VSWR:
<2.0
Peak Gain:
21dBi
Impedance:
50
Description

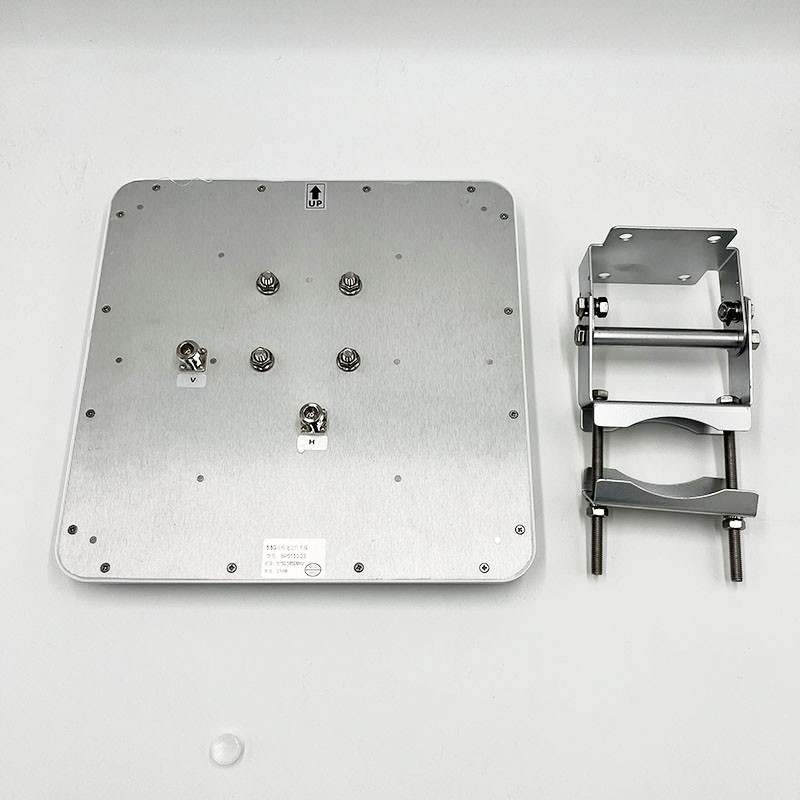

5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm

2*N female 5.8G 5150-5850M wifi 21dBi dual-polarized directional antenna 305x305x25mm

1. Specification

A. Electrical Characteristics
Frequency 5150-5850MHz
S.W.R. <= 2.0
Antenna Gain 21dBi
Polarization H+V
Horizontal Beamwidth 12±3°
Vertical Beamwidth 12±3°
F/B >27dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type 2*N Female connector
Dimension

305*305*25mm
Radome material ABS
Weight 2.3Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm 0

2.2  Total Efficiency & Gain:

Port 1(H)   Port 2(V)
Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi)
5150 20.4 5150 19.4
5200 20.7 5200 19.0
5250 21.1 5250 19.0
5300 21.0 5300 19.5
5350 21.1 5350 18.6
5400 21.1 5400 18.7
5450 21.2 5450 19.9
5500 21.9 5500 20.5
5550 21.9 5550 19.9
5600 21.7 5600 19.8
5650 21.4 5650 20.1
5700 20.2 5700 19.0
5750 19.4 5750 18.5
5800 20.4 5800 19.1
5850 20.5 5850 18.4


2.3 Radiation Pattern

Port1  2D-Horizontal 2D-Vertical Horizontal & Vertical
5150MHz 5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm 1 5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm 2 5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm 3
5500MHz 5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm 4 5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm 5 5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm 6
5850MHz 5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm 7 5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm 8 5.8G 5150-5850M 21dBi Directional Antenna 2*N Female 305x305x25mm 9
