5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna
5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna
5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna
5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna
5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna
5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna

5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10752-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

5.8ghz directional antenna

,

dual band directional antenna

,

12 dbi directional antenna

Frequency:
5150-5850MHz
VSWR:
<2.0
Peak Gain:
12dBi
Impedance:
50
Frequency:
5150-5850MHz
VSWR:
<2.0
Peak Gain:
12dBi
Impedance:
50
Description

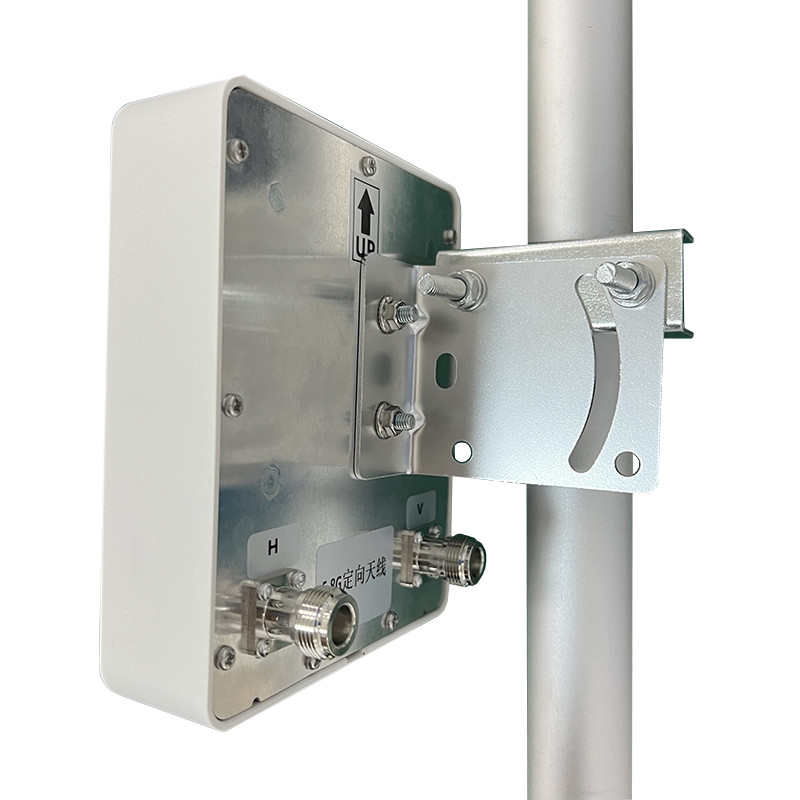

5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna

5.8G 5150-5850M wifi 12dBi dual-polarized wall-mounted directional antenna

1. Specification

A. Electrical Characteristics
Frequency 5150-5850MHz
S.W.R. <= 2.0
Antenna Gain 12dBi
Polarization H+V
Horizontal Beamwidth 80±5°
Vertical Beamwidth 20±5°
F/B >18dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type 2*N Female connector
Dimension

140*120*37mm
Radome material ABS
Weight 0.45Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna 0

2.2  Total Efficiency & Gain:

Port 1 (H)   Port 2 (V)
Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi)
5150 13.3 5150 11.1
5200 13.4 5200 11.1
5250 13.3 5250 10.9
5300 13.1 5300 11.2
5350 13.2 5350 11.5
5400 13.4 5400 11.6
5450 13.2 5450 11.6
5500 13.3 5500 11.7
5550 13.3 5550 11.8
5600 13.6 5600 12.0
5650 13.5 5650 12.0
5700 13.5 5700 11.9
5750 13.9 5750 11.8
5800 13.7 5800 11.6
5850 13.8 5850 11.8

2.3 Radiation Pattern

Port1  2D-Horizontal 2D-Vertical Horizontal & Vertical
5150MHz 5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna 1 5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna 2 5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna 3
5500MHz 5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna 4 5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna 5 5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna 6
5850MHz 5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna 7 5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna 8 5.8ghz 5150-5850M Wifi 12dBi Dual Band Directional Antenna 9
