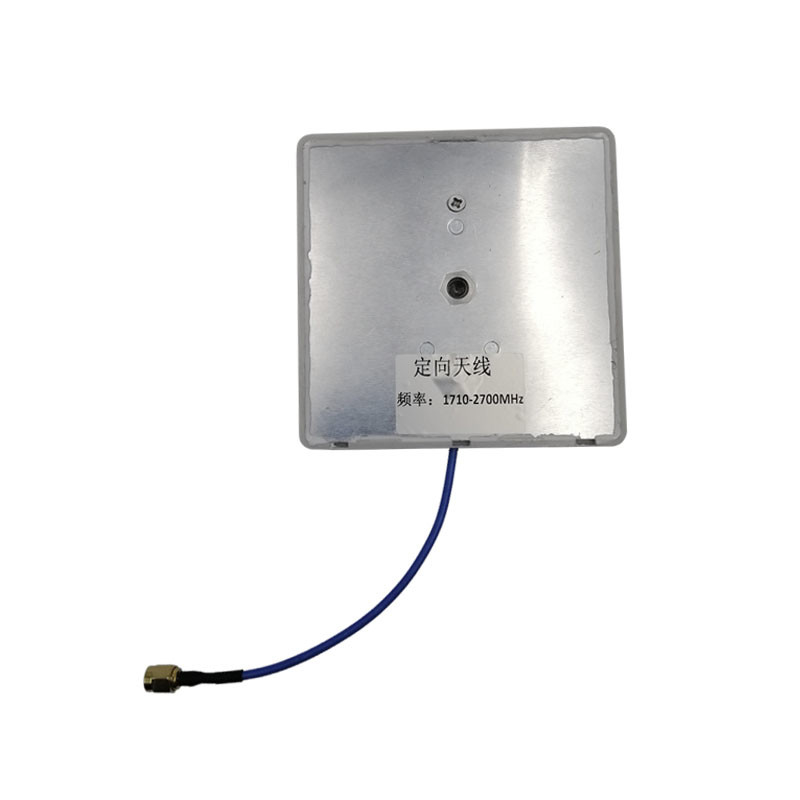

4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10636-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
4G 1710-2700M LTE 8dBi single-polarized wall-mounted directional antenna 1. Specification A. Electrical Characteristics Frequency 1710-2700MHz S.W.R. 10dB Impedance 50Ohm Max. Power 50W B. Material & Mechanical Characteristics Connector Type RG141 L=20cm SMA Male connector Dimension 100*100*25mm ...
Product Details
Highlight:
4g directional antenna
,lte directional antenna
,directional 4g lte antenna
Frequency:
1710-2700MHz
VSWR:
<2.0
Peak Gain:
8dBi
Impedance:
50
Product Description
4G 1710-2700M LTE 8dBi single-polarized wall-mounted directional antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1710-2700MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 8dBi |
| Polarization | V |
| Horizontal Beamwidth | 80±5° |
| Vertical Beamwidth | 60±5° |
| F/B | >10dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | RG141 L=20cm SMA Male connector |
| Dimension | 100*100*25mm |
| Radome material | ABS |
| Weight | 0.35Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 1700 | 6.3 |
| 1800 | 6.8 |
| 1900 | 6.8 |
| 2000 | 6.9 |
| 2100 | 7.0 |
| 2200 | 7.4 |
| 2300 | 7.4 |
| 2400 | 7.4 |
| 2500 | 8.2 |
| 2600 | 8.8 |
| 2700 | 8.5 |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1710MHz | |
|
|
| 2300MHz | |
|
|
| 2700MHz | |
|
|
