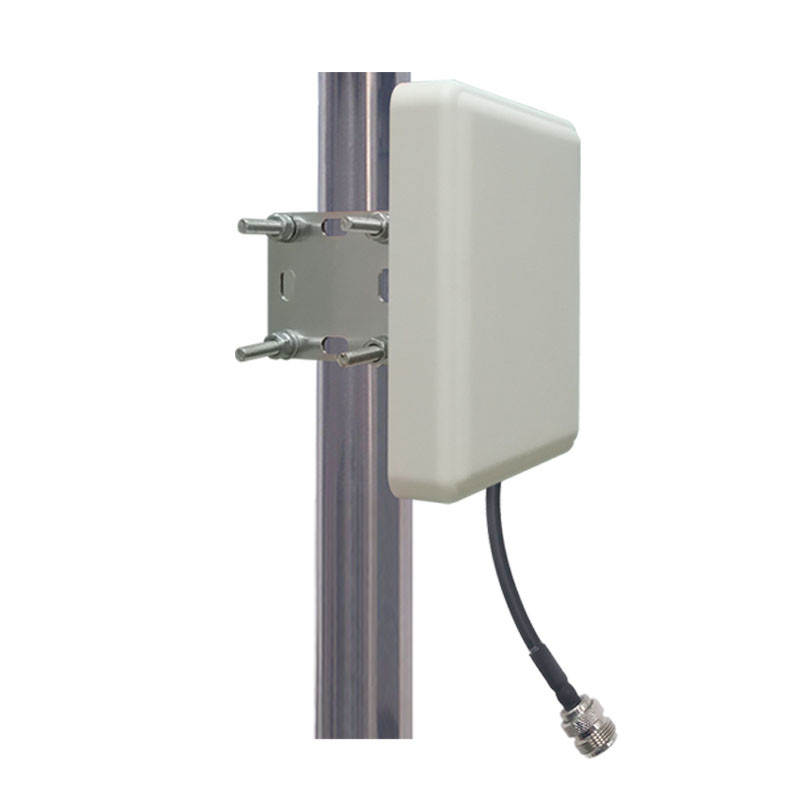

2.4ghz Wifi Directional Antenna 2400-2500M Wifi 10dBi Single-Polarized Wall-Mounted
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10627-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
2.4G 2400-2500M wifi 10dBi single-polarized wall-mounted directional antenna 1. Specification A. Electrical Characteristics Frequency 2400-2500MHz S.W.R. 14dB Impedance 50Ohm Max. Power 50W B. Material & Mechanical Characteristics Connector Type RG58U L=40cm N Female connector Dimension 120*140*25mm ...
Product Details
Highlight:
2.4 ghz directional antenna
,2.4ghz wifi directional antenna
,2.4ghz directional antenna for wifi
Frequency:
2400-2500MHz
VSWR:
<2.0
Peak Gain:
10dBi
Impedance:
50
Product Description
2.4G 2400-2500M wifi 10dBi single-polarized wall-mounted directional antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 10dBi |
| Polarization | V |
| Horizontal Beamwidth | 60±5° |
| Vertical Beamwidth | 45±5° |
| F/B | >14dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | RG58U L=40cm N Female connector |
| Dimension | 120*140*25mm |
| Radome material | ABS |
| Weight | 0.35Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 2400 | 10.2 |
| 2410 | 10.1 |
| 2420 | 9.9 |
| 2430 | 9.8 |
| 2440 | 9.8 |
| 2450 | 9.6 |
| 2460 | 9.5 |
| 2470 | 9.4 |
| 2480 | 9.3 |
| 2490 | 9.2 |
| 2500 | 9.2 |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 2400MHz | |
|
|
| 2450MHz | |
|
|
| 2500MHz | |
|
|
