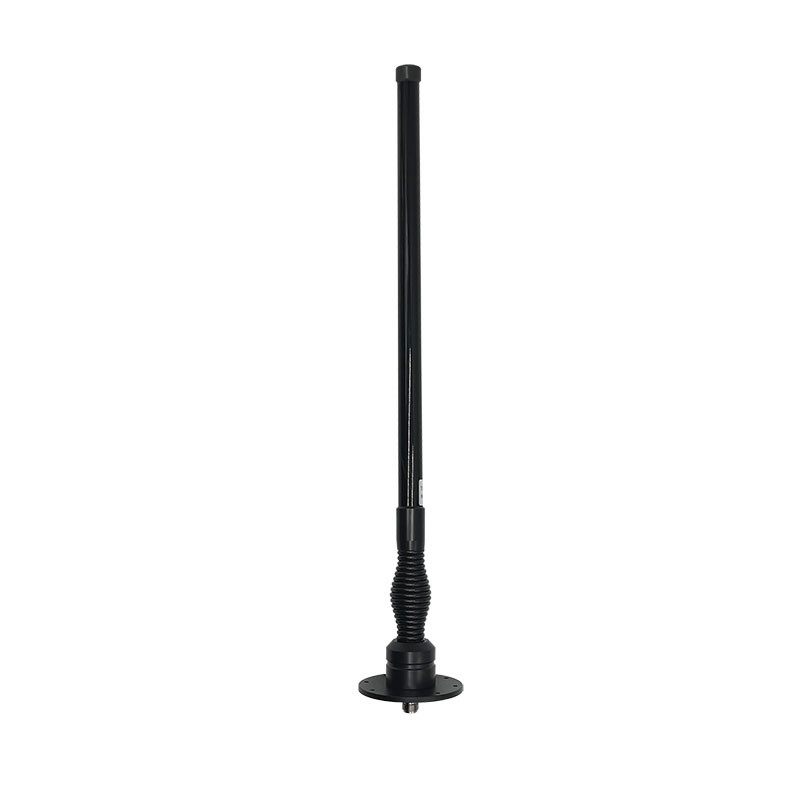

400-470M Frequency Omnidirectional Antenna 150W Flanged Vehicle Spring Damping FRP Antenna

Name: 400-470M Frequency Omnidirectional Antenna 150W Flanged Vehicle Spring Damping FRP Antenna
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10877-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10877-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 100 per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              custom made antenna, frequency omnidirectional antenna, damping FRP antenna


Frequency:	400-470MHz	VSWR:	<2.0
Peak Gain:	2dBi	Impedance:	50

Frequency:	400-470MHz
VSWR:	<2.0
Peak Gain:	2dBi
Impedance:	50

Description

400-470M Frequency Omnidirectional Antenna 150W Flanged Vehicle Spring Damping FRP Antenna

Customized 400-470M omnidirectional high-power 150W flanged vehicle low-frequency spring damping FRP waterproof antenna

1. Specification

A. Electrical Characteristics
Frequency	400-470MHz
Impedance	50 Ohm
S.W.R.	<2.0
Antenna Gain	2dBi
Efficiency	≈90%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	80±10°
Max Power	150W
B. Material & Mechanical Characteristics
Connector Type	N - Female
Dimension	Φ25*750mm
Colour	Army black
Weight	1.1Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 45 ˚C ~ + 85 ˚C
Storage Temperature	- 45 ˚C ~ + 85 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data

2.1 VSWR

400-470M Frequency Omnidirectional Antenna 150W Flanged Vehicle Spring Damping FRP Antenna 0

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)	Efficiency(%)
400	2.3	92.9
410	2.0	94.5
420	1.7	93.4
430	1.7	94.6
440	1.6	93.6
450	1.6	91.2
460	1.6	83.7
470	2.5	85.0

2.3 Radiation Pattern

	3D	2D-Horizontal	2D-Vertical
400MHz
440MHz
470MHz
