6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug
6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug

6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10452-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

6.2-6.8GHz Embedded Antenna

,

embedded wifi antenna

,

gps embedded antenna

Frequency:
6200-6800MHz
VSWR:
<2.0
Peak Gain:
2.5dBi
Impedance:
50 OHM
Frequency:
6200-6800MHz
VSWR:
<2.0
Peak Gain:
2.5dBi
Impedance:
50 OHM
Description

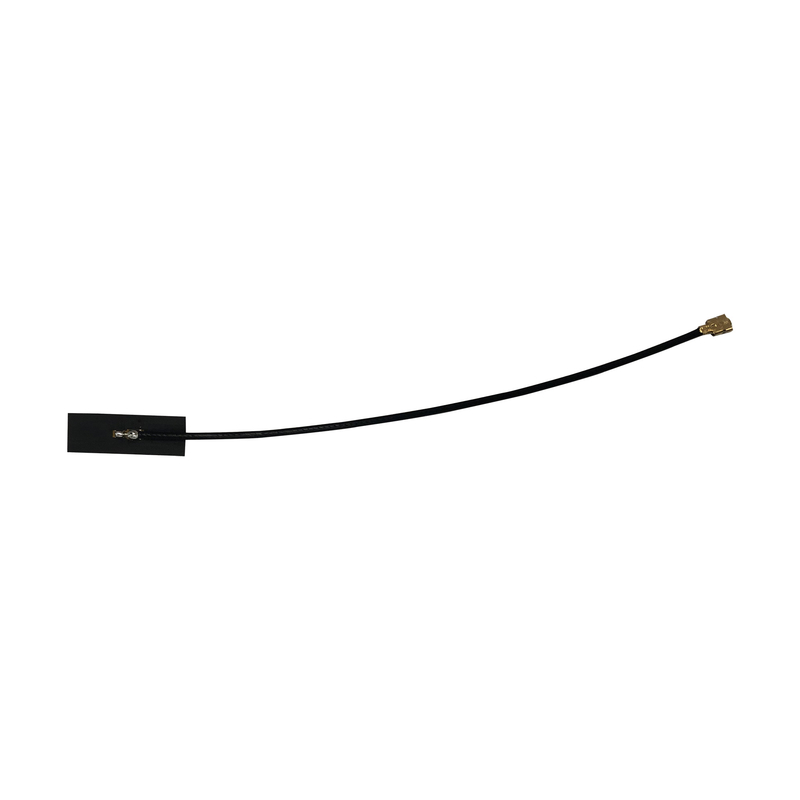

6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug

6.2-6.8GHz Embedded Antenna FPC Antenna MHF1 plug

1. Specification

A. Electrical Characteristics
Frequency 6200-6800MHz
S.W.R. <= 2.0
Antenna Gain 2.5dBi
Efficiency ≈53%
Polarization Linear
B. Material & Mechanical Characteristics
Cable Type RF1.13 Cable, 100mm
Connector Type I-PEX MHF1 Plug
Dimension 6.4x19.2mm
Weight 0.001Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug 0

2.2  Total Efficiency & Gain:


Frequency (MHz) 6200.0 6250.0 6300.0 6350.0 6400.0 6450.0 6500.0 6550.0 6600.0 6650.0 6700.0 6750.0 6800.0
Gain (dBi) 2.57 2.60 2.30 2.15 2.10 2.07 1.83 2.07 2.10 1.97 1.76 1.75 1.50
Efficiency (%) 54.59 57.77 54.77 59.82 51.65 53.50 52.65 56.05 49.59 51.61 48.25 47.58 45.71
6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug 1


2.3 Radiation Pattern
  3D 2D-Horizontal 2D-Vertical
6200MHz 6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug 2 6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug 3 6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug 4
6500MHz 6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug 5 6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug 6 6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug 7
6800MHz 6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug 8 6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug 9 6.2-6.8GHz Embedded Wifi Antenna Gps FPC Antenna MHF1 Plug 10
