3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug
3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug
3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug
3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug

3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10451-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

3.7-4.2GHz Embedded Antenna

,

Embedded Antenna FPC

,

3.7-4.2GHz FPC Antenna

Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
2dBi
Impedance:
50 OHM
Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
2dBi
Impedance:
50 OHM
Description

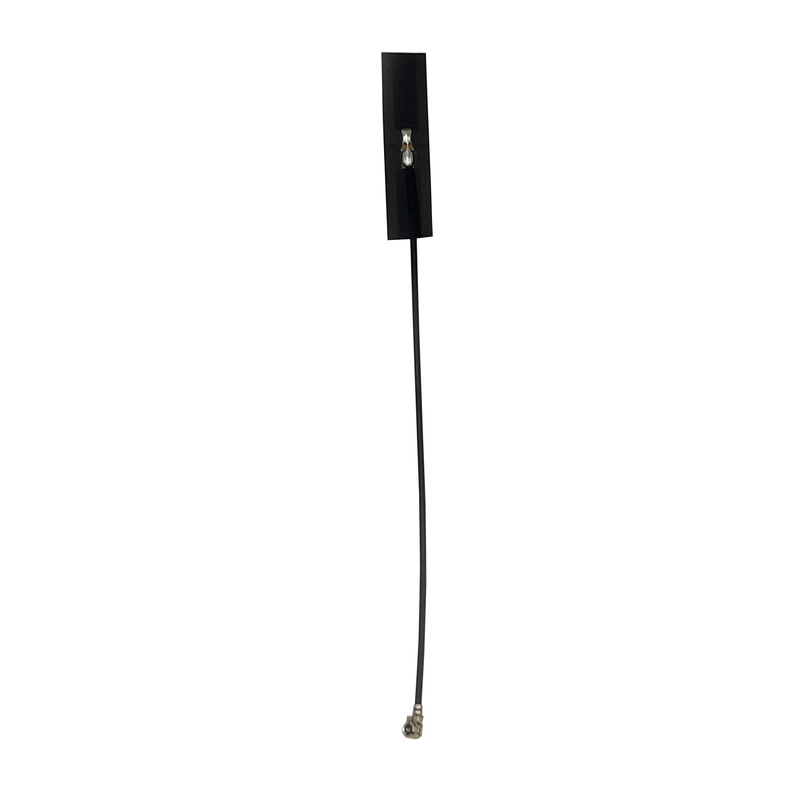

3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug

3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 plug

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <= 2.0
Antenna Gain 2dBi
Efficiency ≈72%
Polarization Linear
B. Material & Mechanical Characteristics
Cable Type RF1.13 Cable, 100mm
Connector Type I-PEX MHF1 Plug
Dimension 8x32.8mm
Weight 0.001Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug 0

2.2  Total Efficiency & Gain:


Frequency (MHz) 3700 3750 3800 3850 3900 3950 4000 4050 4100 4150 4200
Gain (dBi) 2.20 2.31 2.38 1.76 1.86 1.88 1.75 1.91 1.99 1.84 1.74
Efficiency (%) 70.58 69.81 74.56 75.73 73.58 74.02 72.78 75.23 71.72 69.88 67.37
3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug 1


2.3 Radiation Pattern
  3D 2D-Horizontal 2D-Vertical
3700MHz 3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug 2 3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug 3 3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug 4
3950MHz 3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug 5 3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug 6 3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug 7
4200MHz 3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug 8 3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug 9 3.7-4.2GHz Embedded Antenna FPC Antenna MHF1 Plug 10
