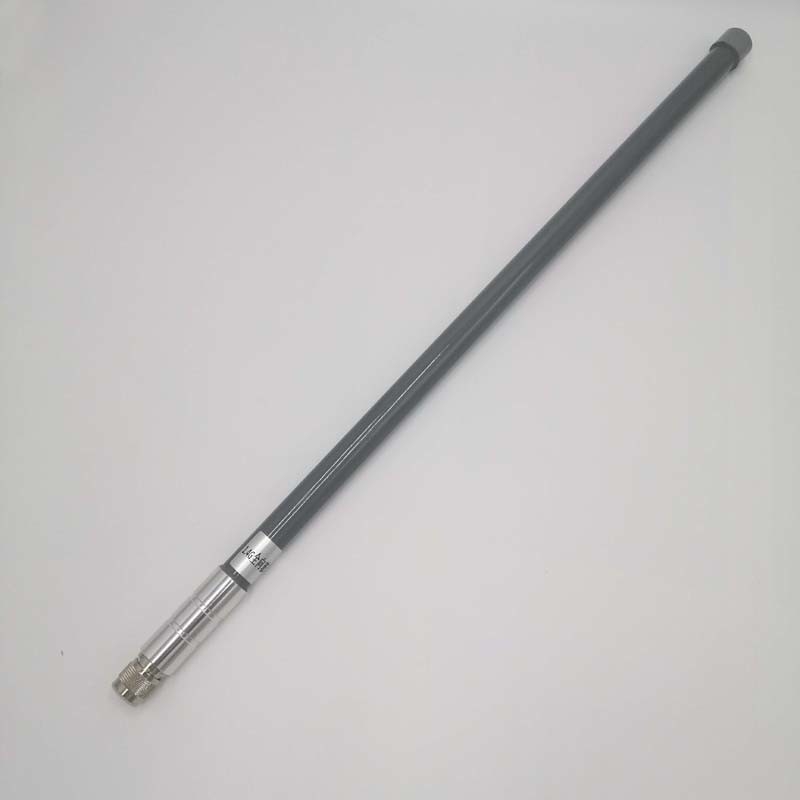

1.4G 1350-1450M 1400M Omnidirectional Antenna UAV Image Transmission Data Transmission 6dBi

Name: 1.4G 1350-1450M 1400M Omnidirectional Antenna UAV Image Transmission Data Transmission 6dBi
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10299-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10299-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              1.4G omnidirectional Antenna, 1350-1450M omnidirectional Antenna, 6 dbi fiberglass antenna


Frequency:	1350-1450MHz	VSWR:	<2.0
Peak Gain:	6dBi	Impedance:	50

Frequency:	1350-1450MHz
VSWR:	<2.0
Peak Gain:	6dBi
Impedance:	50

Description

1.4G 1350-1450M 1400M Omnidirectional Antenna UAV Image Transmission Data Transmission 6dBi

1.4G 1350-1450M 1400M omnidirectional UAV image transmission Data transmission 6dBi outdoor waterproof FRP antenna

1. Specification

A. Electrical Characteristics
Frequency	1350-1450MHz
Impedance	50 Ohm
S.W.R.	<2.0
Gain	6dBi
Efficiency	≈77%
Horizontal Beamwidth	360°
Vertical Beamwidth	21-27°
Polarization	Linear V
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Male
Dimension	Φ20*600mm
Weight	0.234Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 805˚C

2. Antenna - S Parameter Test Data
2.1 VSWR

1.4G 1350-1450M 1400M Omnidirectional Antenna UAV Image Transmission Data Transmission 6dBi 0

2.2 Total Efficiency & Gain:

Frequency(MHz)	1350	1360	1370	1380	1390	1400	1410	1420	1430	1440	1450
Gain (dBi)	4.4	4.7	4.6	4.8	4.7	4.9	5.3	5.6	5.6	5.2	5.0
Efficiency (%)	71.8	76.9	75.6	76.5	72.5	75.2	81.8	84.1	83.5	78.8	73.4

2.3 Radiation Pattern

	3D	2D-Horizontal	2D-Vertical
1350MHz
1400MHz
1450MHz
