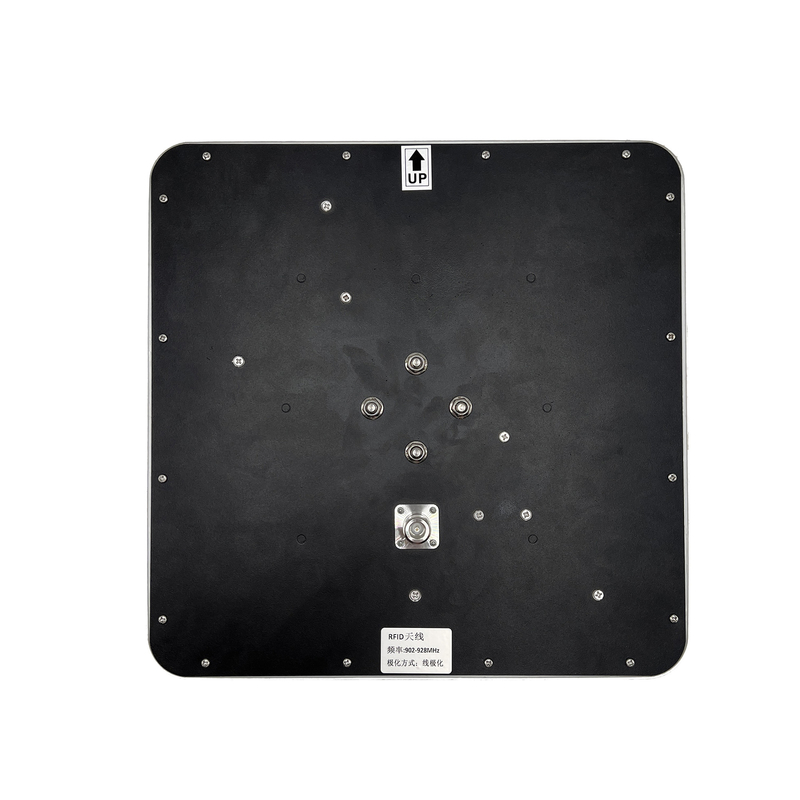

Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25
Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25
Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25
Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25

Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10816-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

10dBi Outdoor Directional Antenna

,

902-928 MHz Outdoor Directional Antenna

,

Black Outdoor Directional Antenna

Frequency:
902-928MHz
VSWR:
<1.5
Peak Gain:
10dBi
Impedance:
50
Frequency:
902-928MHz
VSWR:
<1.5
Peak Gain:
10dBi
Impedance:
50
Description
Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25

1. Specification

A. Electrical Characteristics
Frequency 902-928MHz
S.W.R. <1.5
Antenna Gain 10dBi
Polarization Linear
Horizontal Beamwidth 63-65°
Vertical Beamwidth 51-54°
F/B >20dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension 305*305*25mm
Radome material ABS
Weight 1.6Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR


Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25 0





2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
900 10.6
902 10.7
904 10.7
906 10.8
908 10.8
910 10.8
912 10.8
914 10.7
916 10.6
918 10.5
920 10.4
922 10.3
924 10.1
926 10.0
928 9.9
930 9.9



2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
902MHz Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25 1 Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25 2 Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25 3
915MHz Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25 4 Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25 5 Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25 6
928MHz Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25 7 Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25 8 Black Outdoor Directional Antenna Flat Panel RFID 902-928 MHz 10dBi 305x305x25 9
