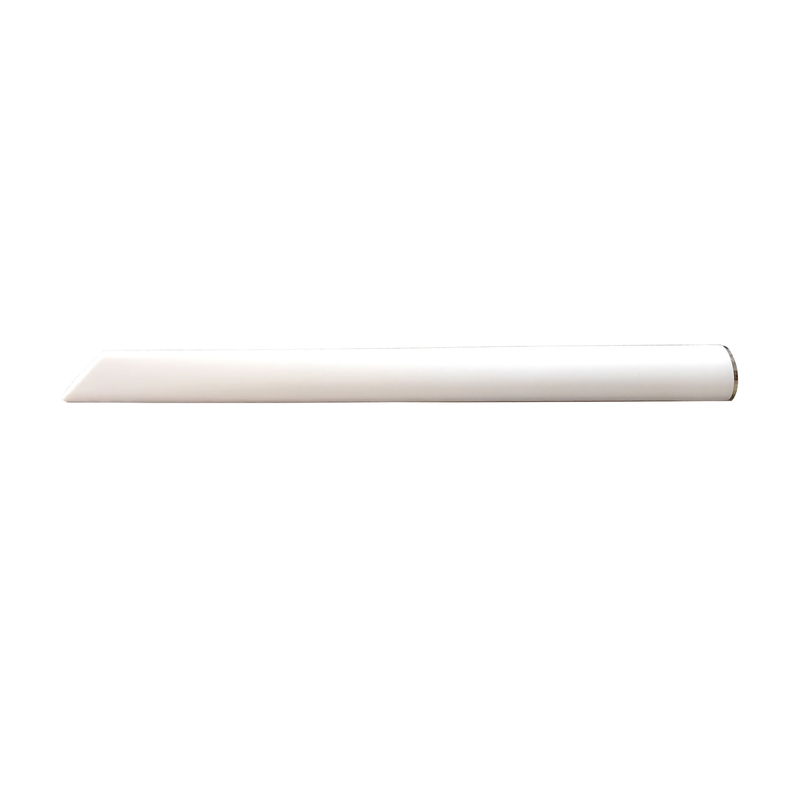

2.4 Ghz Rubber Duck Antenna Satellite WIFI Antenna 3dBi 13x161
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-13161-W
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
Indoor Antenna External Antenna Rubber Duck Antenna 2.4GHz WIFI Antenna 3dBi 13x161 1. Specification A. Electrical Characteristics Frequency 2400~2500 MHz S.W.R. =3.0Kg Connector Torque Test NONE C. Environmental Operation Temperature - 40 ˚C ~ + 65 ˚C Storage Temperature - 40 ˚C ~ + 80 ˚C 2. ...
Product Details
Highlight:
2.4 ghz rubber duck antenna
,rubber duck antenna satellite
,rubber duck style antenna
Frequency:
2400-2500MHZ
VSWR:
<2.0
Peak Gain:
3dBi
Impedance:
50
Product Description
Indoor Antenna External Antenna Rubber Duck Antenna 2.4GHz WIFI Antenna 3dBi 13x161
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400~2500 MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 5 dBi |
| Polarization | Linear |
| Impedance | 50 Ohm |
| B. Material & Mechanical Characteristics | |
| Material of Radiator | PCB+Spring |
| Material of Plastic | Body: TPEE |
| Cable Type | RG 178 |
| Connector Type | RP-SMA Male |
| Connector Pull Test | >=3.0Kg |
| Connector Torque Test | NONE |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 65 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data
2.1 VSWR
