2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna
2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna
2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna

2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10337-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

6ghz external antenna

,

External Antenna 470-510MHz

,

470-510MHz Flexible whip antenna

Frequency:
470-510MHZ
VSWR:
<2.0
Peak Gain:
1dBi
Impedance:
50
Frequency:
470-510MHZ
VSWR:
<2.0
Peak Gain:
1dBi
Impedance:
50
Description
2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna

Indoor Antenna External Antenna 470-510MHz Flexible whip antenna

1. Specification

A. Electrical Characteristics
Frequency 470-510MHz
S.W.R. <= 2.0
Antenna Gain 1dBi
Efficiency ≈53%
Polarization Linear
Impedance 50 Ohm
B. Material & Mechanical Characteristics

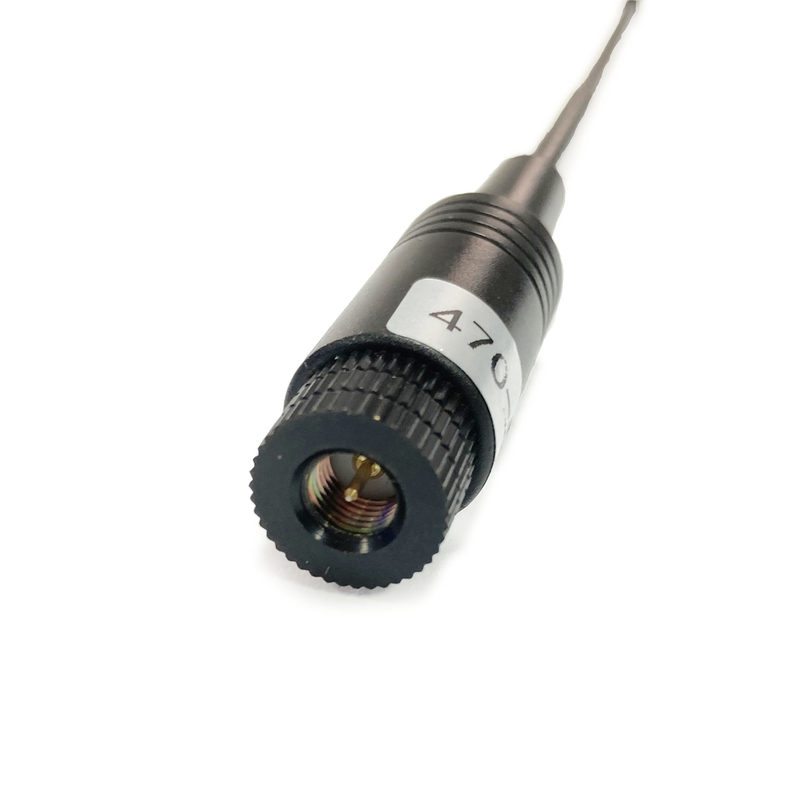

Connector Type SMA Plug
Dimension 15*200mm
Weight 0.02Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna 0

2.2 Total Efficiency & Gain

Frequency (MHz) 470.0 475.0 480.0 485.0 490.0 495.0 500.0 505.0 510.0
Gain (dBi) 0.58 0.58 0.89 0.86 0.83 0.74 0.74 0.80 0.81
Efficiency (%) 49.78 49.18 52.67 52.77 53.39 53.26 53.76 54.29 53.89
2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna 1





2.3 Radiation Pattern


  3D 2D-Horizontal 2D-Vertical
470MHz 2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna 2 2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna 3 2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna 4
490MHz 2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna 5 2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna 6 2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna 7
510MHz 2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna 8 2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna 9 2g 5g 6ghz External Antenna 470-510MHz Flexible Whip Antenna 10
