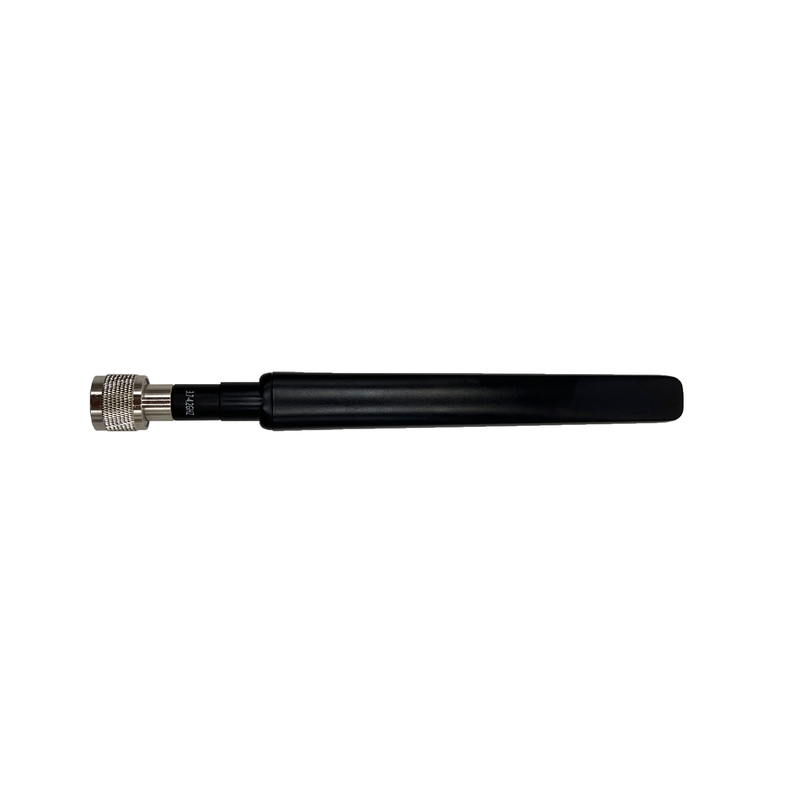

Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm
Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm
Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm

Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10663-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

External Antenna 5dBi

,

UWB Antenna 3700-4200MHz

,

UWB Antenna 5dBi

Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
5dBi
Impedance:
50
Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
5dBi
Impedance:
50
Description
Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm

Indoor Antenna External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <= 2.0
Antenna Gain 5dBi
Efficiency ≈65%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 23-28°
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Connector Type N Male
Dimension φ20*218mm
Color Black
Weight 0.055Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm 0

2.2  Total Efficiency & Gain

Frequency (MHz) 3700.0 3750.0 3800.0 3850.0 3900.0 3950.0 4000.0 4050.0 4100.0 4150.0 4200.0
Gain (dBi) 4.87 4.52 4.44 4.52 4.56 4.68 4.38 4.27 4.94 5.15 5.54
Efficiency (%) 63.98 61.97 62.59 63.76 62.90 66.80 65.66 62.28 66.00 64.12 66.35
Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm 1


2.2 Radiation Pattern


  3D 2D-Horizontal 2D-Vertical
3700MHz Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm 2 Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm 3 Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm 4
3950MHz Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm 5 Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm 6 Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm 7
4200MHz Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm 8 Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm 9 Indoor External Antenna UWB Antenna 3700-4200MHz 5dBi 20x218mm 10
