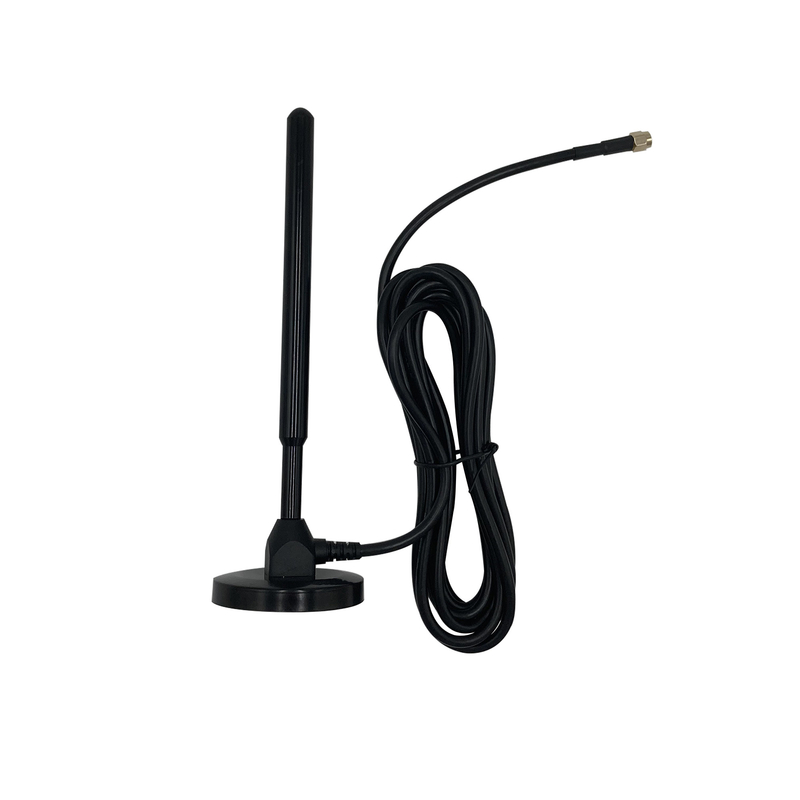

Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm
Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm

Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10482-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

mobile antenna magnetic mount

,

sma magnetic antenna mount

,

magnetic mount antenna 470-510MHz

Frequency:
470-510MHz
VSWR:
<2.5
Peak Gain:
0.5dBi
Impedance:
50
Frequency:
470-510MHz
VSWR:
<2.5
Peak Gain:
0.5dBi
Impedance:
50
Description
Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm

1. Specification

A. Electrical Characteristics
Frequency 470-510MHz
Impedance 50 Ohm
S.W.R. <2.5
Gain 0.5dBi
Polarization Linear
Horizontal Beamwidth 360°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Cable Type RG58 Cable
Dimension Φ62*208mm
Weight 0.355Kg
Antenna material Copper Rod
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm 0



2.2  Total Efficiency & Gain:

Frequency (MHz) 470 480 490 500 510
Gain (dBi) 0.61 0.52 -0.16 -1.52 -0.26
Efficiency (%) 57.35 56.91 49.69 34.09 39.56

2.3 Radiation Pattern

  3D 2D-Horizontal 2D-Vertical
470MHz Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm 1 Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm 2 Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm 3
490MHz Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm 4 Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm 5 Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm 6
510MHz Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm 7 Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm 8 Sma Mobile Antenna Magnetic Mount Lora Antenna 470-510MHz RG58 Cable 62x208mm 9
