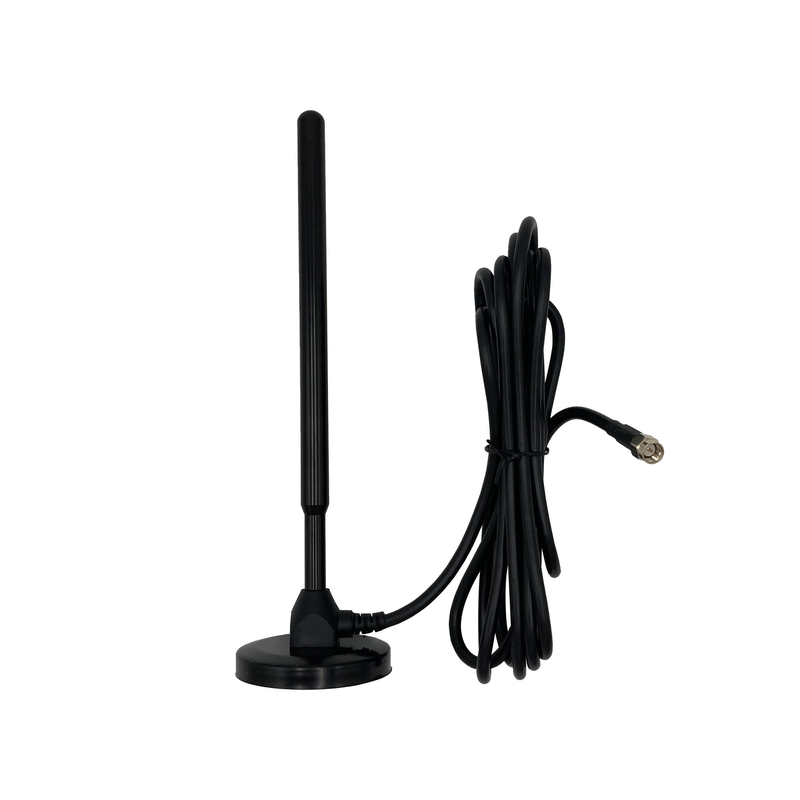

Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223
Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223

Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10664-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

magnetic mount wifi antenna

,

magnetic mount antenna 2.4GHz

,

2dBi magnetic mount antenna

Frequency:
433MHz
VSWR:
<2.0
Peak Gain:
2.0dBi
Impedance:
50
Frequency:
433MHz
VSWR:
<2.0
Peak Gain:
2.0dBi
Impedance:
50
Description
Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223

1. Specification

A. Electrical Characteristics
Frequency 433MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 2dBi
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 55-60°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Cable Type RG58 Cable
Dimension Φ62*230mm
Weight 0.38Kg
Antenna material Copper Rod
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 0



2.2  Total Efficiency & Gain:

Frequency(MHz) 430.0 431.0 432.0 433.0 434.0 435.0 436.0
Gain (dBi) 1.82 1.79 1.74 1.68 1.69 1.67 1.58
Efficiency (%) 79.64 80.24 80.56 80.58 80.05 78.70 76.17
Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 1

2.3 Radiation Pattern

  3D 2D-Horizontal 2D-Vertical
430MHz Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 2 Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 3 Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 4
433MHz Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 5 Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 6 Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 7
436MHz Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 8 Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 9 Magnetic Mount Wifi Antenna 2.4GHz 2dBi RG58 Cable 30x223 10
