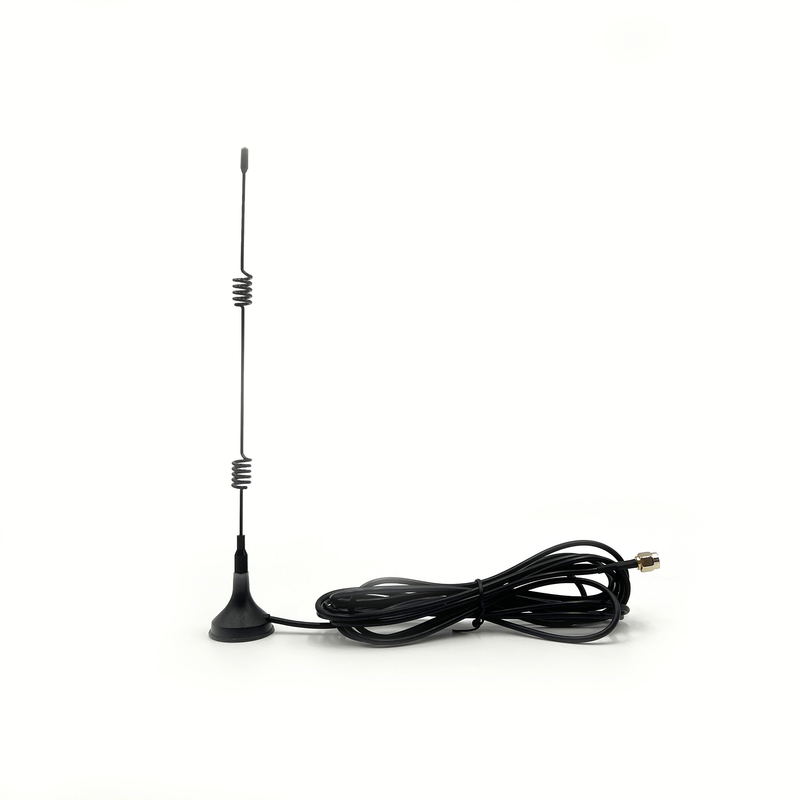

2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10691-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
1. Specification A. Electrical Characteristics Frequency 2400-2500MHz Impedance 50 Ohm S.W.R.
Product Details
Highlight:
2.4 ghz magnetic mount antenna
,magnetic mount antenna WIFI
,mag mount wifi antenna
Frequency:
2400-2500MHz
VSWR:
<2.0
Peak Gain:
-2.1dBi
Impedance:
50
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | -2.1dBi |
| Efficiency | ≈12% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 25-28° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA connector |
| Cable Type | RG174 Cable |
| Dimension | Φ30*223mm |
| Weight | 0.046Kg |
| Antenna material | Carbon Steel |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 2400.0 | 2410.0 | 2420.0 | 2430.0 | 2440.0 | 2450.0 | 2460.0 | 2470.0 | 2480.0 | 2490.0 | 2500.0 |
| Gain (dBi) | -3.28 | -3.33 | -3.25 | -3.05 | -3.05 | -2.92 | -2.43 | -2.15 | -2.21 | -2.28 | -2.13 |
| Efficiency (%) | 11.68 | 11.18 | 11.07 | 11.54 | 11.27 | 11.27 | 12.24 | 12.51 | 11.99 | 11.52 | 11.75 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz | |
|
|
| 2450MHz | |
|
|
| 2500MHz | |
|
|
