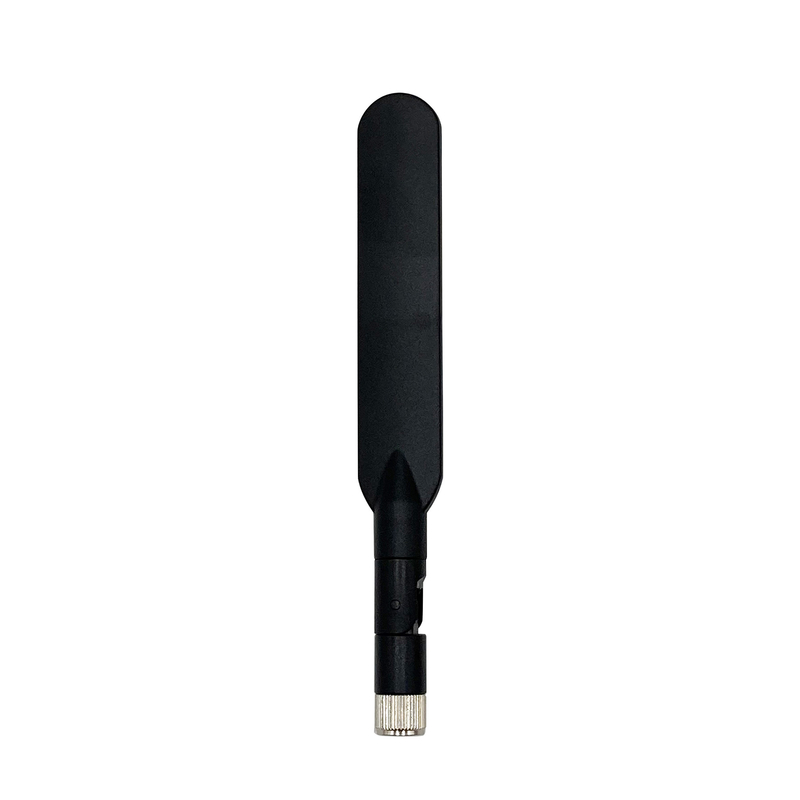

5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162

Name: 5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10026-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10026-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              5ghz external antenna, WIFI Dual Band Antenna 2.4G, 5dBi  external antenna


Frequency:	2400-2500MHz; 5150-5850MHz	VSWR:	<2.3
Peak Gain:	5dBi	Impedance:	50

Frequency:	2400-2500MHz; 5150-5850MHz
VSWR:	<2.3
Peak Gain:	5dBi
Impedance:	50

Description

5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162

Indoor Antenna External Antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162
1. Specification

A. Electrical Characteristics
Frequency	2400-2500MHz	5150-5850MHz
Impedance	50 Ohm	50 Ohm
S.W.R.	<2.0	<2.3
Gain	4dBi	5dBi
Efficiency	≈70%	≈60%
Polarization	Linear	Linear
Max Power	50W	50W
B. Material & Mechanical Characteristics
Connector Type	RP-SMA connector
Dimension	Φ13*162mm
Weight	0.02Kg
Antenna material	PCB
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162 0

2.2 Total Efficiency & Gain

Frequency (MHz)	2400.0	2410.0	2420.0	2430.0	2440.0	2450.0	2460.0	2470.0	2480.0	2490.0	2500.0
Gain (dBi)	4.03	3.90	3.74	3.85	4.00	4.25	4.23	4.09	4.10	4.28	4.27
Efficiency (%)	82.39	80.78	76.67	75.78	77.08	81.95	82.99	80.12	76.72	76.47	76.68

Frequency (MHz)	5150	5200	5250	5300	5350	5400	5450	5500	5550	5600	5650	5700	5750	5800	5850
Gain (dBi)	4.11	4.73	4.38	4.93	4.97	4.10	4.69	4.73	4.52	4.21	4.33	4.11	4.22	4.05	4.11
Efficiency (%)	56.15	51.72	57.05	61.91	62.36	63.62	65.13	63.95	63.05	62.89	65.07	61.28	63.66	63.70	65.08
