Indoor External Antenna Gooseneck 220-1700MHz TNC Connector 20x450mm

Name: Indoor External Antenna Gooseneck 220-1700MHz TNC Connector 20x450mm
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10784-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10784-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              Indoor External Antenna, Antenna Gooseneck 220-1700MHz, Indoor Antenna  220-1700MHz


Frequency:	220-1700MHZ	VSWR:	<2.0
Peak Gain:	0dBi	Impedance:	50

Frequency:	220-1700MHZ
VSWR:	<2.0
Peak Gain:	0dBi
Impedance:	50

Description

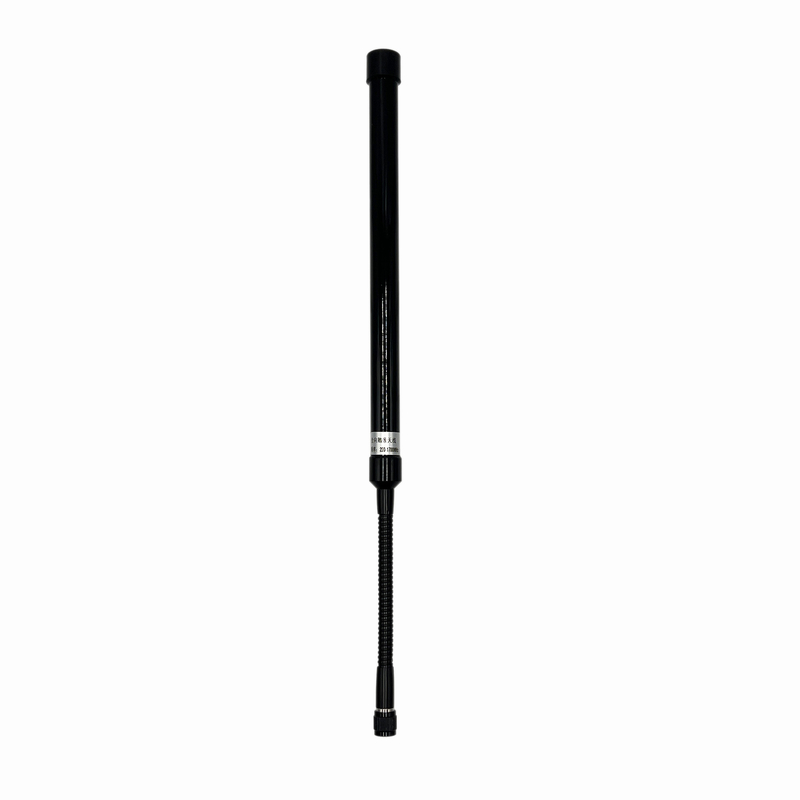

Indoor External Antenna Gooseneck 220-1700MHz TNC Connector 20x450mm

Indoor Antenna External Antenna Gooseneck 220-1700MHz TNC connector 20x450mm

1. Specification

A. Electrical Characteristics
Frequency	220-1700MHz
Impedance	50 Ohm
S.W.R.	<2.0
Gain	0dBi
Efficiency	≈79%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	14-100°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	TNC connector
Dimension	Φ20*450mm
Weight	0.173Kg
Radome Materials	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
Indoor External Antenna Gooseneck 220-1700MHz TNC Connector 20x450mm 0

2.2 Total Efficiency & Gain

Frequency (MHz)	Gain (dBi)	Efficiency (%)
220	-6.3	13.8
240	-4.5	19.5
260	-5.4	15.6
280	-5.4	14.1
300	-5.3	13.8
320	-2.9	19.2
340	-2.5	21.6
360	-3.0	16.1
380	-3.1	17.6
400	-1.6	23.2
450	-1.8	22.3
500	-3.1	14.9
550	-2.4	12.6
600	-0.6	16.9
650	-1.2	19.3
700	-1.9	26.2
750	-3.1	26.5
800	-2.7	28.2
850	-4.2	20.7
900	-3.7	21.5
950	-3.2	21.8
1000	-2.9	21.2
1050	-3.6	17.5
1100	-0.9	27.8
1150	-1.3	26.6
1200	-1.9	24.1
1250	-1.3	23.0
1300	-0.8	23.0
1350	-0.3	25.7
1400	1.0	32.6
1450	0.4	29.4
1500	-0.6	24.1
1550	-0.9	22.2
1600	-0.5	22.6
1650	-0.7	23.0
1700	-1.2	25.8
