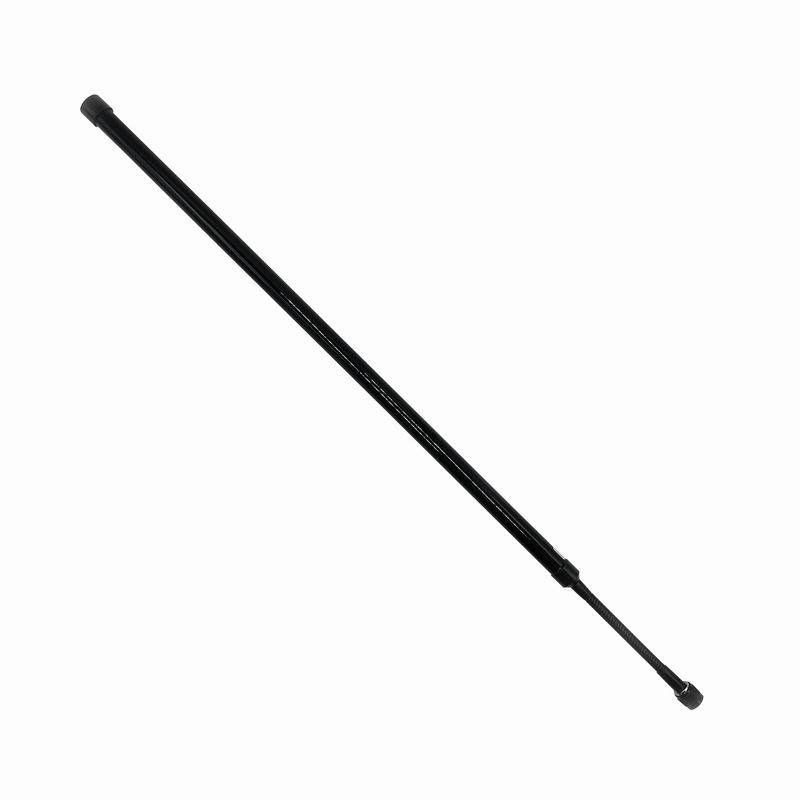

High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm
High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm
High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm
High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm

High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10783-B

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

External Antenna 1.5dBi

,

External Antenna 340-370MHz

,

high gain external antenna

Frequency:
340-370MHZ
VSWR:
<2.0
Peak Gain:
1.5dBi
Impedance:
50
Frequency:
340-370MHZ
VSWR:
<2.0
Peak Gain:
1.5dBi
Impedance:
50
Description
High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm

Indoor Antenna External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm

1. Specification

A. Electrical Characteristics
Frequency 340-370MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 1.5dBi
Efficiency ≈70%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 44-84°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type TNC connector
Dimension Φ20*800mm
Weight 0.278Kg
Radome Materials Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm 0



2.2 Total Efficiency & Gain

Frequency(MHz) 340.0 345.0 350.0 355.0 360.0 365.0 370.0
Gain (dBi) 1.42 1.69 1.51 1.40 1.28 1.20 1.17
Efficiency (%) 54.39 64.33 71.20 74.51 74.25 73.59 74.75
High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm 1




2.3 Radiation Pattern



  3D 2D-Horizontal 2D-Vertical
340MHz High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm 2 High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm 3 High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm 4
355MHz High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm 5 High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm 6 High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm 7
370MHz High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm 8 High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm 9 High Gain External Antenna Gooseneck 340-370MHz 1.5dBi 20x800mm 10
