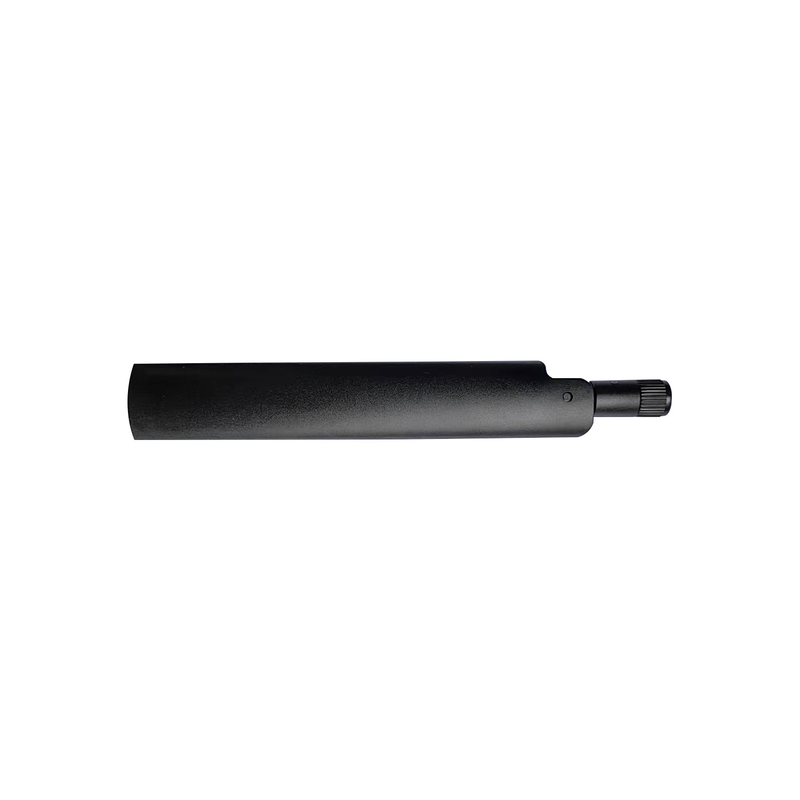

High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135
High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135
High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135
High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135

High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10135-B

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

high gain rubber duck antenna

,

rubber duck antenna 4G

,

rubber duck antenna 600-6000MHz

Frequency:
617-960MHZ, 1575-2690MHZ, 3300-6000MHz
VSWR:
<3.0
Peak Gain:
2dBi
Impedance:
50
Frequency:
617-960MHZ, 1575-2690MHZ, 3300-6000MHz
VSWR:
<3.0
Peak Gain:
2dBi
Impedance:
50
Description
High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135

Indoor Antenna External Antenna Rubber Duck Antenna Multi Band 4G 5G Antenna 600-6000MHz 4dBi 10x135

1. Specification

A. Electrical Characteristics
Frequency 617-960MHZ, 1575-2690MHZ, 3300-6000MHz
S.W.R. <= 3.0
Antenna Gain

2.0dBi @ 617-960MHZ

2.0dBi @ 1575-2690MHZ

2.5dBi @ 3300-6000MHZ
Efficiency ≈65%
Polarization Linear
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Connector Type SMA Plug
Dimension 10*135.6mm
Weight 0.01Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135 0



2.2 Total Efficiency & Gain

High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135 1



2.3 Radiation Pattern



High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135 2High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135 3High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135 4
