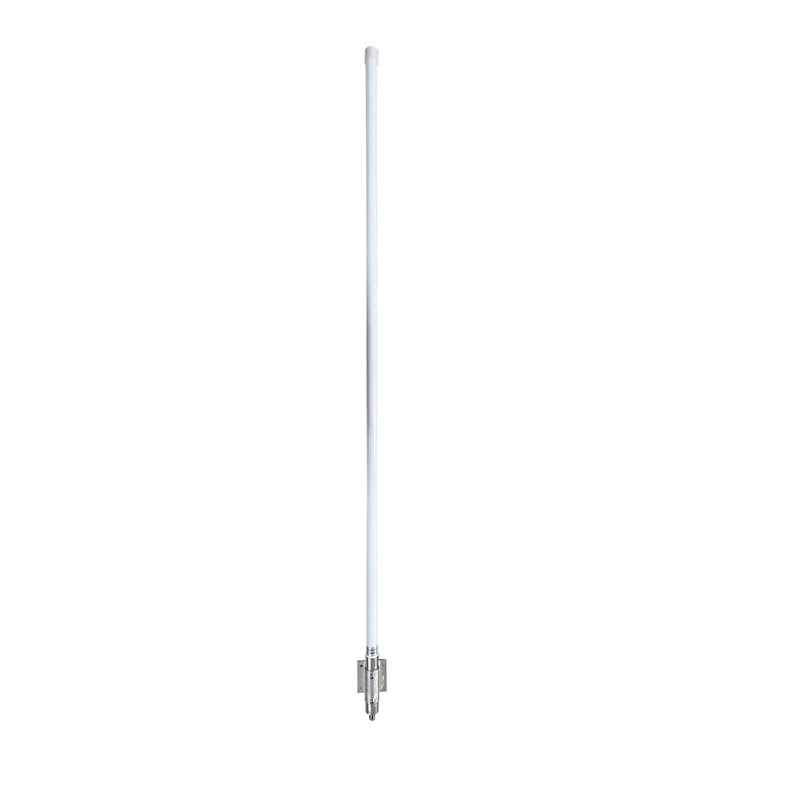

400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi

400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10859-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

Fiberglass Antenna 390-420MHz 5dBi

,

5g omnidirectional antenna

,

400 mhz omnidirectional antenna

Frequency:
390-420MHz
VSWR:
<2.0
Peak Gain:
5dBi
Impedance:
50
Frequency:
390-420MHz
VSWR:
<2.0
Peak Gain:
5dBi
Impedance:
50
Description
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna 390-420MHz 5dBi

1. Specification

A. Electrical Characteristics
Frequency 390-420MHz
S.W.R. <= 2
Antenna Gain 5dBi
Efficiency ≈83%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 26-30°
Impedance 50 Ohm
Max Power 100W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ32*1800mm
Weight 1.55Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground


2. Antenna - S Parameter Test Data
2.1 VSWR
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 0

2.2  Total Efficiency & Gain:

Frequency(MHz) 390 395 400 405 410 415 420
Gain (dBi) 5.3 5.5 4.9 4.8 5.0 5.0 4.8
Efficiency (%) 82.4 88.3 84.6 84.4 82.6 83.2 80.1
400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 1



2.3 Radiation Pattern
  3D 2D-Horizontal 2D-Vertical
390MHz 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 2 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 3 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 4
405MHz 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 5 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 6 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 7
420MHz 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 8 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 9 400 Mhz Omnidirectional Antenna 5g Fiberglass Antenna 390-420MHz 5dBi 10
