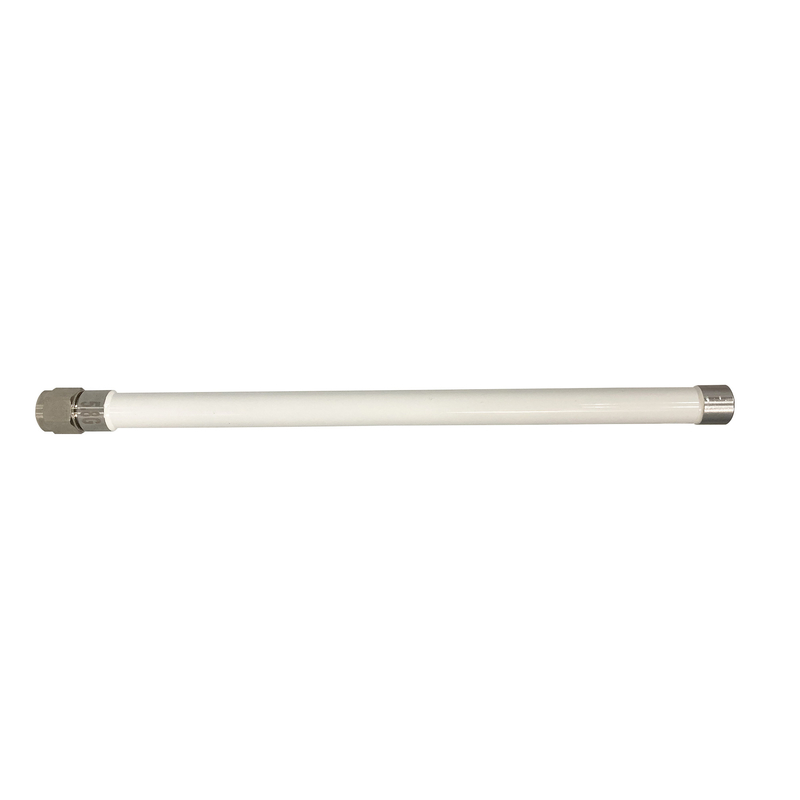

Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm
Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm
Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm

Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10411-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

omnidirectional antenna 9.5dBi

,

wifi omnidirectional antenna

,

9.5dBi Fiberglass Antenna

Frequency:
5150-5850MHz
VSWR:
<2.0
Peak Gain:
9.5dBi
Impedance:
50
Frequency:
5150-5850MHz
VSWR:
<2.0
Peak Gain:
9.5dBi
Impedance:
50
Description
Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna WIFI 5.8GHz 9.5dBi 16x300

1. Specification

A. Electrical Characteristics
Frequency 5150-5850MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 9.5dBi
Efficiency ≈70%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 15°±5°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ16*300mm
Weight 0.097Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data
2.1 VSWR

Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm 0


2.2  Total Efficiency & Gain:

Frequency(MHz) 5150 5200 5250 5300 5350 5400 5450 5500 5550 5600 5650 5700 5750 5800 5850
Gain (dBi) 8.13 7.58 7.41 7.71 7.52 7.19 7.21 7.70 8.07 8.50 8.76 9.18 9.12 9.14 9.51
Efficiency (%) 66.24 59.25 59.92 69.26 68.08 68.27 70.70 67.14 66.26 69.03 71.68 77.47 76.62 77.82 79.60
Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm 1






2.3 Radiation Pattern



  3D 2D-Horizontal 2D-Vertical
5150MHz Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm 2 Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm 3 Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm 4
5500MHz Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm 5 Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm 6 Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm 7
5850MHz Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm 8 Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm 9 Wifi Omnidirectional Antenna 9.5dBi Fiberglass Antenna WIFI 5.8GHz 16x300mm 10
