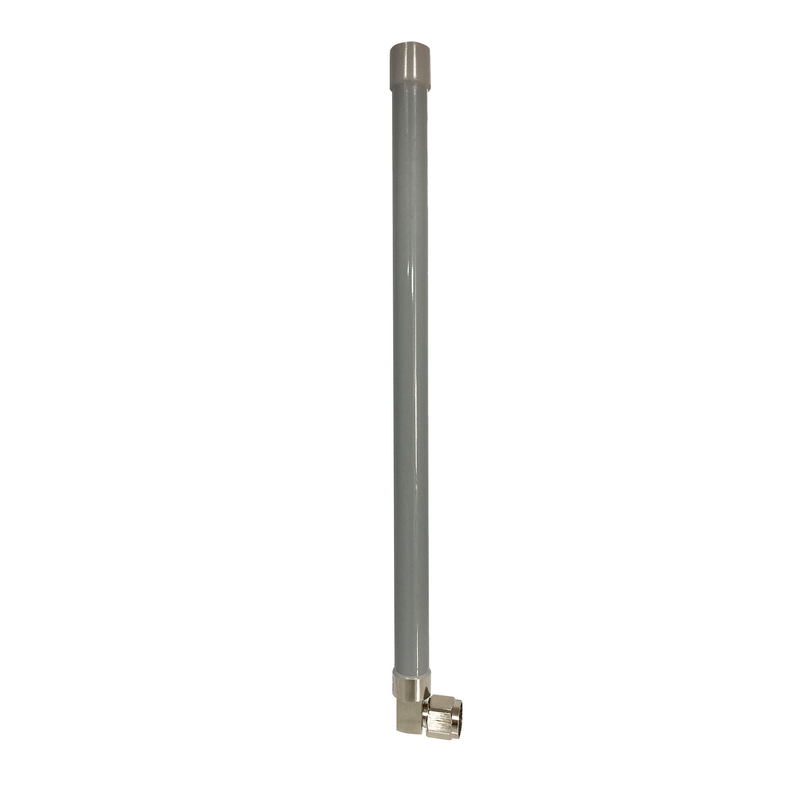

Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm
Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm
Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm

Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10372-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

outdoor omnidirectional antenna

,

outdoor wifi omnidirectional antenna

,

9dBi Fiberglass Antenna

Frequency:
5150-5850MHz
VSWR:
<2.0
Peak Gain:
9dBi
Impedance:
50
Frequency:
5150-5850MHz
VSWR:
<2.0
Peak Gain:
9dBi
Impedance:
50
Description
Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna WIFI 5.8GHz 9dBi 18.5x355

1. Specification

A. Electrical Characteristics
Frequency 5150-5850MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 9dBi
Efficiency ≈67%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 12°±3°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ18.5*355mm
Weight 0.153Kg
Radome Materials Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR

Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm 0


2.2  Total Efficiency & Gain:

Frequency(MHz) 5150 5200 5250 5300 5350 5400 5450 5500 5550 5600 5650 5700 5750 5800 5850
Gain (dBi) 7.42 7.07 7.25 7.83 7.72 7.60 7.39 7.10 7.00 6.82 7.19 8.40 8.74 8.89 8.97
Efficiency (%) 63.18 56.42 58.94 67.39 68.85 68.47 67.40 66.33 67.58 66.57 62.71 70.69 73.30 75.22 78.56
Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm 1





2.3 Radiation Pattern



  3D 2D-Horizontal 2D-Vertical
5150MHz Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm 2 Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm 3 Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm 4
5500MHz Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm 5 Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm 6 Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm 7
5850MHz Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm 8 Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm 9 Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm 10
