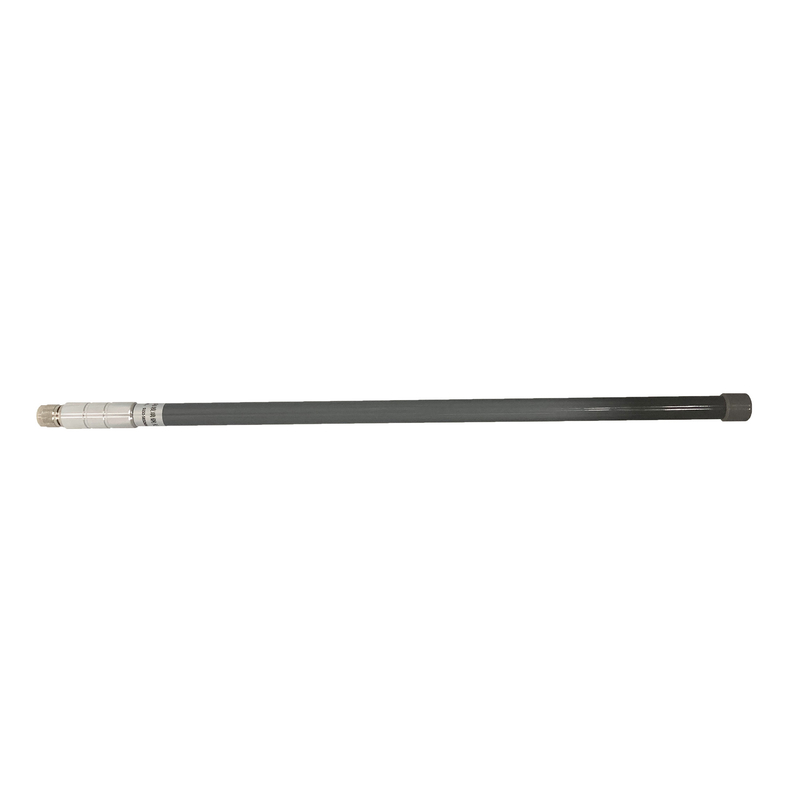

Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm
Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm
Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm

Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10118-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

omnidirectional wireless antenna

,

5.8GHz Fiberglass Antenna

,

10dBi Fiberglass Antenna

Frequency:
5150-5850MHz
VSWR:
<1.6
Peak Gain:
10dBi
Impedance:
50
Frequency:
5150-5850MHz
VSWR:
<1.6
Peak Gain:
10dBi
Impedance:
50
Description
Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna WIFI 5.8GHz 10dBi 20x600

1. Specification

A. Electrical Characteristics
Frequency 5150-5850MHz
Impedance 50 Ohm
S.W.R. <1.6
Gain 10dBi
Efficiency ≈69%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 8°±1°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ20*600mm
Weight 0.175Kg
Radome Materials Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR

Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm 0


2.2  Total Efficiency & Gain:

Frequency(MHz) 5150 5200 5250 5300 5350 5400 5450 5500 5550 5600 5650 5700 5750 5800 5850
Gain (dBi) 8.75 8.82 9.08 9.16 9.32 9.86 10.12 9.98 9.81 9.87 10.38 10.37 10.09 9.34 8.51
Efficiency (%) 67.16 63.97 65.61 65.21 65.05 67.25 68.99 67.83 66.91 68.26 70.46 72.10 73.38 72.74 73.67
Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm 1




2.3 Radiation Pattern



  3D 2D-Horizontal 2D-Vertical
5150MHz Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm 2 Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm 3 Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm 4
5500MHz Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm 5 Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm 6 Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm 7
5850MHz Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm 8 Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm 9 Omnidirectional Wireless Antenna 10dBi Fiberglass Antenna WIFI 5.8GHz 20x600mm 10
