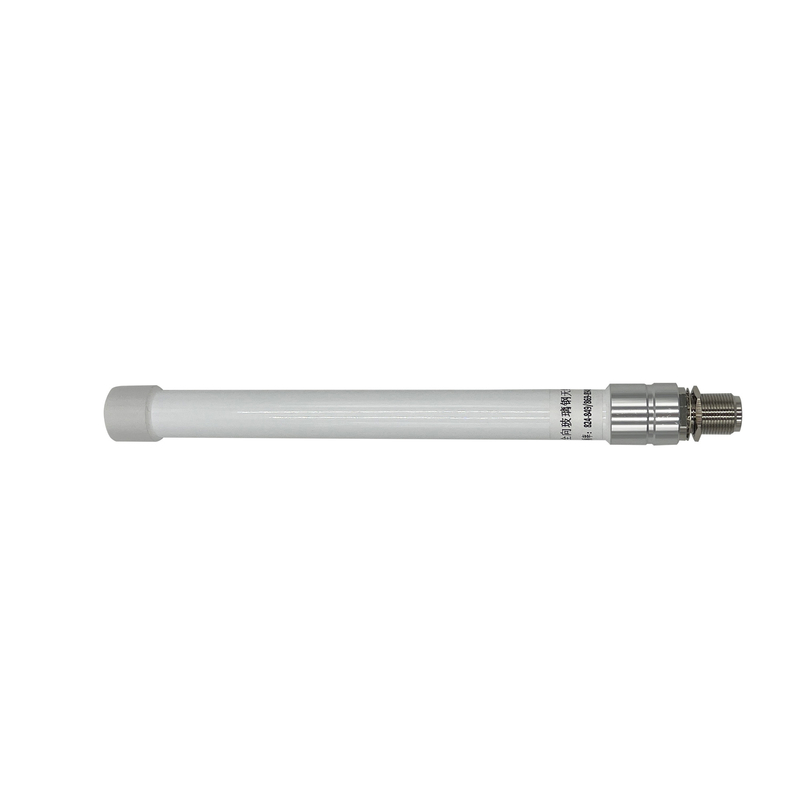

868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm

868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10621-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

868 mhz omnidirectional antenna

,

Fiberglass Antenna 824-894MHz

,

2dBi Fiberglass Antenna

Frequency:
824-894MHz
VSWR:
<2.0
Peak Gain:
2dBi
Impedance:
50
Frequency:
824-894MHz
VSWR:
<2.0
Peak Gain:
2dBi
Impedance:
50
Description
868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm

Outdoor Waterproof Omnidirectional Antenna IP67 Fiberglass Antenna 824-894MHz Antenna 868MHZ Antenna 2dBi 20x250

1. Specification

A. Electrical Characteristics
Frequency 824-894MHz
Impedance 50 Ohm
S.W.R. <2
Gain 2dBi
Efficiency ≈76%
Horizontal Beamwidth 360°
Vertical Beamwidth 83-93°
Polarization Linear
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ20*250mm
Weight 0.28Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR

868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 0


2.2  Total Efficiency & Gain:

Frequency(MHz) 824.0 829.0 834.0 839.0 844.0 849.0
Gain (dBi) 1.88 1.73 1.55 1.33 1.24 1.14
Efficiency (%) 85.48 83.22 79.87 75.30 73.43 71.04
Frequency(MHz) 869.0 874.0 879.0 884.0 889.0 894.0
Gain (dBi) 1.68 1.85 1.91 1.92 1.85 1.72
Efficiency (%) 74.95 76.83 77.04 76.49 74.71 71.43
868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 1



2.3 Radiation Pattern



  3D 2D-Horizontal 2D-Vertical
824MHz 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 2 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 3 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 4
834MHz 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 5 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 6 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 7
849MHz 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 8 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 9 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 10
  3D 2D-Horizontal 2D-Vertical
869MHz 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 11 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 12 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 13
879MHz 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 14 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 15 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 16
894MHz 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 17 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 18 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 19














Tags:

outdoor omnidirectional antenna,

Fiberglass antenna,

custom fiberglass antenna
