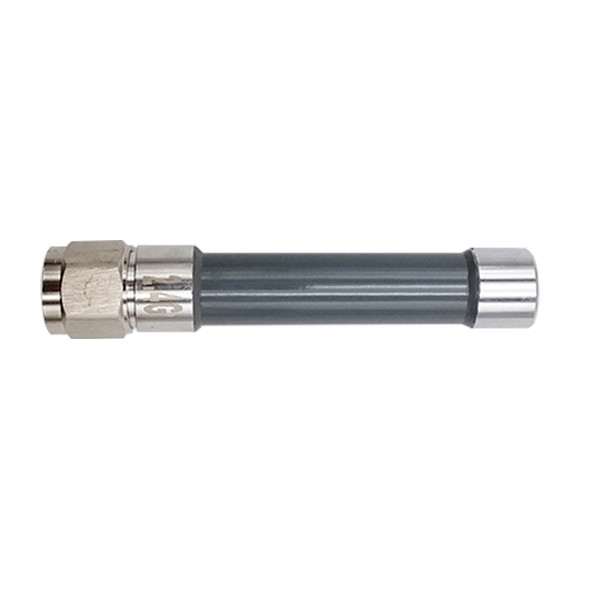

Industrial Omnidirectional Antenna 5g 4g Fiberglass Antenna 2.4Ghz WIFI 2.5dBi 100mm

Name: Industrial Omnidirectional Antenna 5g 4g Fiberglass Antenna 2.4Ghz WIFI 2.5dBi 100mm
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10149-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10149-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              industrial omnidirectional antenna, omnidirectional antenna 5g, omnidirectional antenna 4g


Frequency:	2400-2500MHz	VSWR:	<2.0
Peak Gain:	2.5dBi	Impedance:	50

Frequency:	2400-2500MHz
VSWR:	<2.0
Peak Gain:	2.5dBi
Impedance:	50

Description

Industrial Omnidirectional Antenna 5g 4g Fiberglass Antenna 2.4Ghz WIFI 2.5dBi 100mm

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna FRP Antenna 2.4Ghz WIFI 2.5dBi 100mm

1. Specification

A. Electrical Characteristics
Frequency	2400-2500MHz
Impedance	50 Ohm
S.W.R.	<2.0
Antenna Gain	2.5dBi
Efficiency	≈84%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	70°±5°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	Φ16*100mm
Weight	0.065Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data
2.1 VSWR

Industrial Omnidirectional Antenna 5g 4g Fiberglass Antenna 2.4Ghz WIFI 2.5dBi 100mm 0

2.2 Total Efficiency & Gain:

Frequency (MHz)	2400.0	2410.0	2420.0	2430.0	2440.0	2450.0	2460.0	2470.0	2480.0	2490.0	2500.0
Gain (dBi)	2.45	2.33	2.18	2.17	2.11	2.35	2.39	2.37	2.25	2.37	2.30
Efficiency (%)	91.41	89.10	84.26	82.37	81.00	84.73	85.50	85.31	81.83	83.29	84.37
