Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200

Name: Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10104-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10104-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              25x200 Fiberglass Omni Antenna, 600-6000MHz Fiberglass Omni Antenna, 5G Fiberglass Omni Antenna


Frequency:	617-960MHz; 1710-6000MHz	VSWR:	<4.2/<3.0
Peak Gain:	1.5dBi/4.5dBi	Impedance:	50

Frequency:	617-960MHz; 1710-6000MHz
VSWR:	<4.2/<3.0
Peak Gain:	1.5dBi/4.5dBi
Impedance:	50

Description

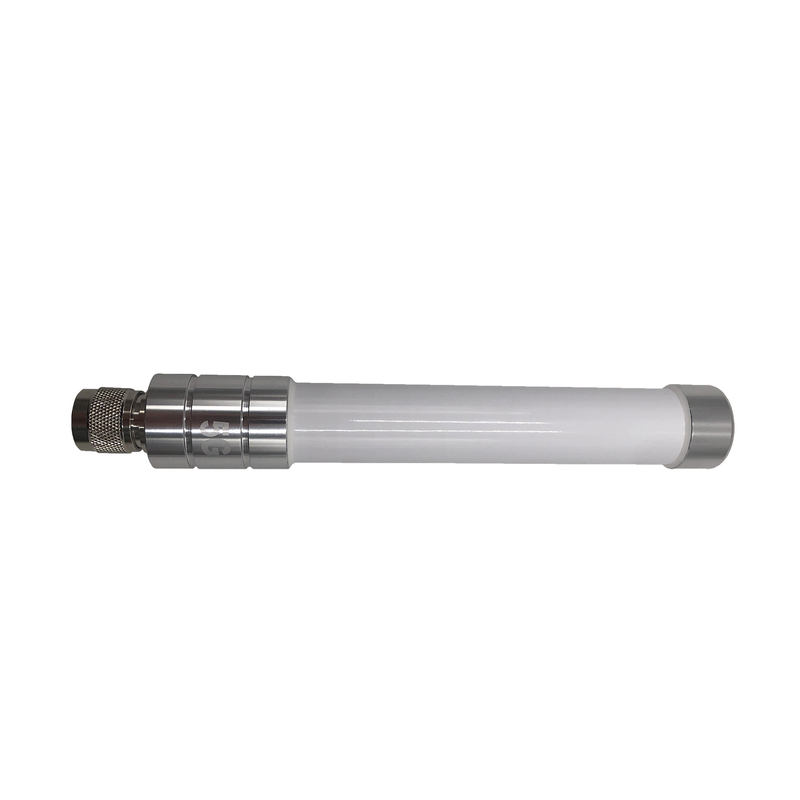

Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200

1. Specification

A. Electrical Characteristics
Frequency	617-960MHz	1710-6000MHz
Impedance	50 Ohm	50 Ohm
S.W.R.	<4.2	<3.0
Gain	1.5dBi	4.5dBi
Efficiency	≈34%	≈66%
Horizontal Beamwidth	360°	360°
Vertical Beamwidth	38°@868MHz	37°@1980MHz
Polarization	Linear	Linear
Max Power	50W	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	Φ25*200mm
Weight	0.12Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
Fiberglass Omni Antenna Outdoor 5G 600-6000MHz 1.5-4.5dB 25x200 0

2.2 Total Efficiency & Gain:

Frequency (MHz)	615	638	661	684	707	730	753	776	799	822	845	868	891	914	937	960
Gain (dBi)	0.50	-0.06	-0.61	-1.05	-0.68	-1.14	-1.21	-1.40	-1.51	-1.55	-1.86	-1.39	-1.07	0.18	1.45	1.63
Efficiency (%)	36.43	38.57	40.58	35.45	40.56	34.90	34.44	33.43	29.27	29.08	26.81	27.19	27.75	31.25	36.07	34.63

Frequency (MHz)	1710	1800	1890	1980	2070	2160	2250	2340	2430	2520	2610	2700
Gain (dBi)	2.13	2.58	2.75	2.73	2.17	2.86	3.06	3.49	3.69	3.62	4.23	3.48
Efficiency (%)	69.99	67.64	74.36	74.33	63.88	70.86	68.54	73.47	67.47	71.50	77.74	78.00

Frequency (MHz)	3000	3100	3200	3300	3400	3500	3600	3700	3800	3900	4000	4100	4200	4300	4400	4500
Gain (dBi)	3.55	3.94	3.76	3.77	3.14	3.78	3.42	3.05	2.89	2.33	2.89	3.15	3.35	3.25	3.77	4.44
Efficiency (%)	64.20	64.64	66.16	64.49	67.76	66.03	62.13	60.80	64.81	65.76	68.69	70.34	68.90	64.23	64.39	60.27

Frequency (MHz)	4600	4700	4800	4900	5000	5100	5200	5300	5400	5500	5600	5700	5800	5900	6000
Gain (dBi)	4.04	3.34	3.00	2.72	2.94	3.64	3.65	3.64	3.05	3.44	4.22	4.70	4.60	4.11	4.08
Efficiency (%)	59.66	63.31	66.79	64.23	63.40	61.91	63.27	64.90	63.68	62.76	64.39	66.90	61.43	57.97	53.46
