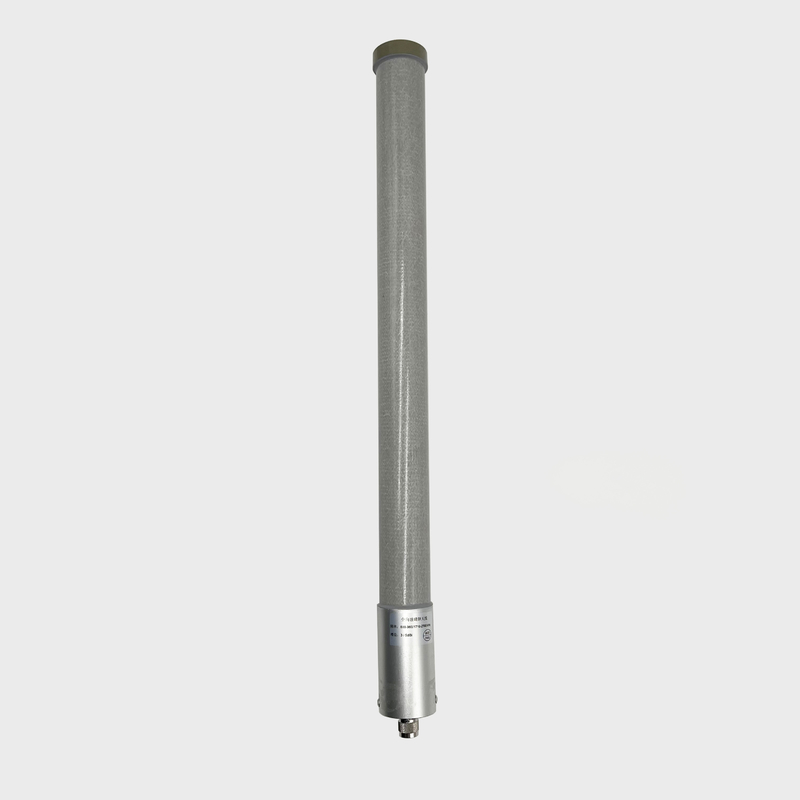

4G LTE Fiberglass 5dbi Omni Antenna 802-2700MHz 51x700
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-11025-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
1. SpecificationA. Electrical CharacteristicsFrequency800-960MHz1710-2700MHzImpedance50 Ohm50 OhmS.W.R.
Product Details
Highlight:
5dbi Omni Antenna
,802-2700MHz Omni Antenna
,4G LTE Omni Antenna
Frequency:
800-960MHz; 1710-2700
VSWR:
<2
Peak Gain:
5dBi
Impedance:
50
Product Description
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 800-960MHz | 1710-2700MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2 | <2 |
| Gain | 3-4dBi | 2-5dBi |
| Efficiency | ≈69% | ≈59% |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 30-46° | 25-59° |
| Max Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | Φ51*700mm | |
| Weight | 0.9Kg | |
| Radome material | Fiberglass | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Efficiency(%) | Frequency(MHz) | Gain(dBi) | Efficiency(%) | |
| 800 | 4.4 | 71.0 | 1710 | 2.8 | 55.3 | |
| 820 | 4.9 | 68.3 | 1800 | 3.1 | 56.4 | |
| 840 | 2.8 | 59.3 | 1900 | 4.0 | 60.7 | |
| 860 | 3.4 | 60.5 | 2000 | 4.0 | 60.2 | |
| 880 | 4.4 | 68.3 | 2100 | 5.3 | 63.8 | |
| 900 | 5.0 | 81.5 | 2200 | 4.1 | 62.6 | |
| 920 | 4.5 | 75.0 | 2300 | 4.0 | 59.8 | |
| 940 | 3.2 | 70.4 | 2400 | 5.1 | 67.4 | |
| 960 | 3.8 | 66.8 | 2500 | 4.1 | 58.1 | |
| 2600 | 3.2 | 53.7 | ||||
| 2700 | 4.0 | 48.7 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 800MHz | | | |
| 880MHz | | | |
| 960MHz | | | |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1710MHz | | | |
| 2200MHz | | | |
| 2700MHz | | | |
