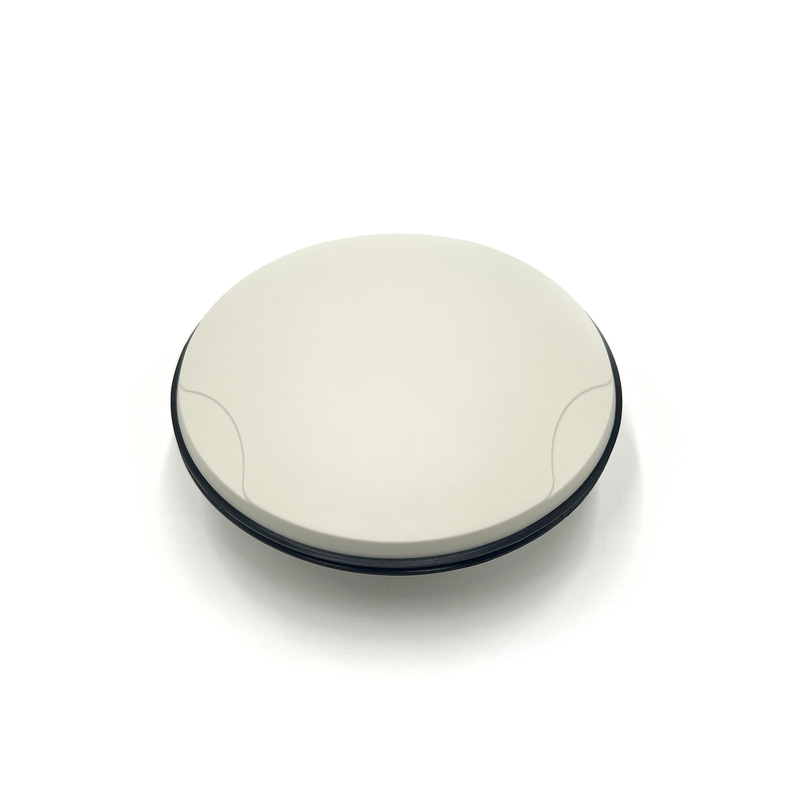

Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo

Name: Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10690-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10690-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              gps survey antenna, gps gnss antenna, antenna gps glonass


Frequency:	1160-1290MHz / 1525-1615MHz	VSWR:	<2.0
LNA Gain:	40dBi	Impedance:	50

Frequency:	1160-1290MHz / 1525-1615MHz
VSWR:	<2.0
LNA Gain:	40dBi
Impedance:	50

Description

Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo

Satellite Positioning Antenna Four-Star Multi-Band Survey antenna 40dBi GPS GLONASS Beidou Galileo

1. Specification

A. Electrical Characteristics
Frequency		1160-1290MHz, 1525-1615MHz
Supported Positioning signal bands		GPS: L1/L2 BDS: B1/B2/B3 GLONASS: G1/G2 Galileo: E1/E5b
Peak Gain		≥5.5dBi@Fc
Impedance		50Ohm
Polarization		RHCP
Axial Ratio		≤3 dB
Azimuth Coverage		360°
Phase-center accuracy		≤2.0mm
B. LNA and Filter Electrical Properties
LNA Gain	40±2dBi(Typ.@25℃)
Group Delay variation	≤5ns
Noise Figure	≤2.0dB@25℃,Typ.(Pre-filtered)
Output VSWR	≤1.5 : 1Typ. 2.0 : 1 Max
Operation Voltage	3.3-12 V DC
Operation Current	≤45mA
C. Material & Mechanical Characteristics
Connector Type		TNC connector
Dimension		Φ150x60mm
Radome material		ABS
Waterproof		IP67
Weight		0.42Kg
C. Environmental
Operation Temperature		- 40 ˚C ~ + 85 ˚C
Storage Temperature		- 40 ˚C ~ + 85 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

Four-Star Multi-Band Gps Survey Antenna 40dBi Antenna GPS GLONASS Beidou Galileo 0

2.2 LNA Gain:

Frequency (MHz)	Gain (dBi)	Frequency (MHz)	Gain (dBi)
1160.0	34.7	1525.0	27.4
1165.0	36.4	1530.0	34.5
1170.0	37.9	1535.0	37.3
1175.0	39.2	1540.0	39.9
1180.0	40.1	1545.0	40.8
1185.0	40.6	1550.0	40.9
1190.0	41.0	1555.0	40.7
1195.0	41.0	1560.0	40.3
1200.0	41.5	1565.0	40.0
1205.0	41.9	1570.0	39.9
1210.0	42.0	1575.0	40.1
1215.0	42.0	1580.0	40.2
1220.0	41.8	1585.0	40.0
1225.0	41.4	1590.0	39.7
1230.0	40.8	1595.0	39.2
1235.0	40.7	1600.0	38.6
1240.0	40.7	1605.0	38.1
1245.0	40.3	1610.0	36.6
1250.0	39.9	1615.0	31.8
1255.0	38.9
1260.0	38.4
1265.0	37.7
1270.0	36.3
1275.0	34.5
1280.0	32.6
1285.0	30.7
1290.0	29.3
