High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch
High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch
High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch

High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10271-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

GPS Passive Antenna

,

GPS Antenna

,

High gain GPS passive antenna

Frequency:
1575.42MHz
VSWR:
<2.0
Gain:
2dBi
Impedance:
50
Frequency:
1575.42MHz
VSWR:
<2.0
Gain:
2dBi
Impedance:
50
Description

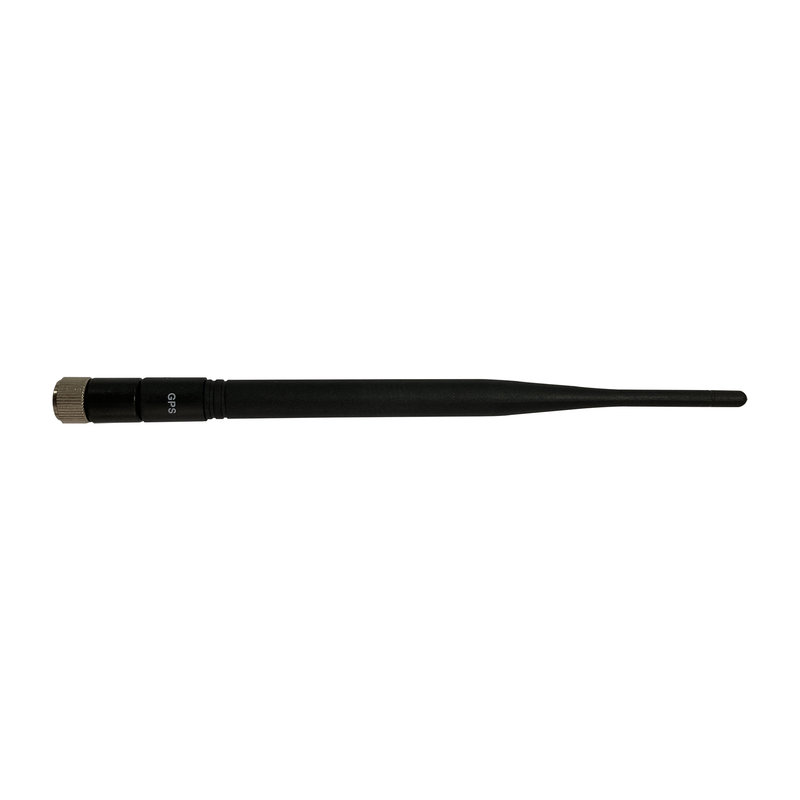

High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch

Satellite Positioning Antenna GPS Passive Antenna 1575.42 MHz 2dBi 13x209

1. Specification

A. Electrical Characteristics
Frequency 1575.42MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 2dBi
Efficiency ≈75%
Polarization Linear
Max Power 5W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Dimension Φ13*209mm
Weight 0.02Kg
Antenna Color Black
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch 0



2.2  LNA Gain:



Frequency (MHz) 1570.0 1571.0 1572.0 1573.0 1574.0 1575.0 1576.0 1577.0 1578.0 1579.0 1580.0
Gain (dBi) 2.07 2.05 2.02 1.97 1.94 1.91 1.82 1.77 1.74 1.72 1.72
Efficiency (%) 77.01 76.91 76.51 75.93 75.37 75.05 73.79 72.99 72.59 72.48 72.48




2.3 Radiation Pattern
  3D 2D-Horizontal 2D-Vertical
1570MHz High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch 1 High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch 2 High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch 3
1575MHz High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch 4 High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch 5 High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch 6
1580MHz High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch 7 High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch 8 High Gain GPS Passive Antenna 1575.42 MHz 2dBi 13x209 Internal External | Patch 9
