Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130
Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130
Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130

Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10090-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

passive gnss antenna

,

gnss gps antenna

,

gnss multiband

Frequency:
1561.098MHz / 1575.42MHz
VSWR:
<1.5
Gain:
3dBi
Impedance:
50
Frequency:
1561.098MHz / 1575.42MHz
VSWR:
<1.5
Gain:
3dBi
Impedance:
50
Description

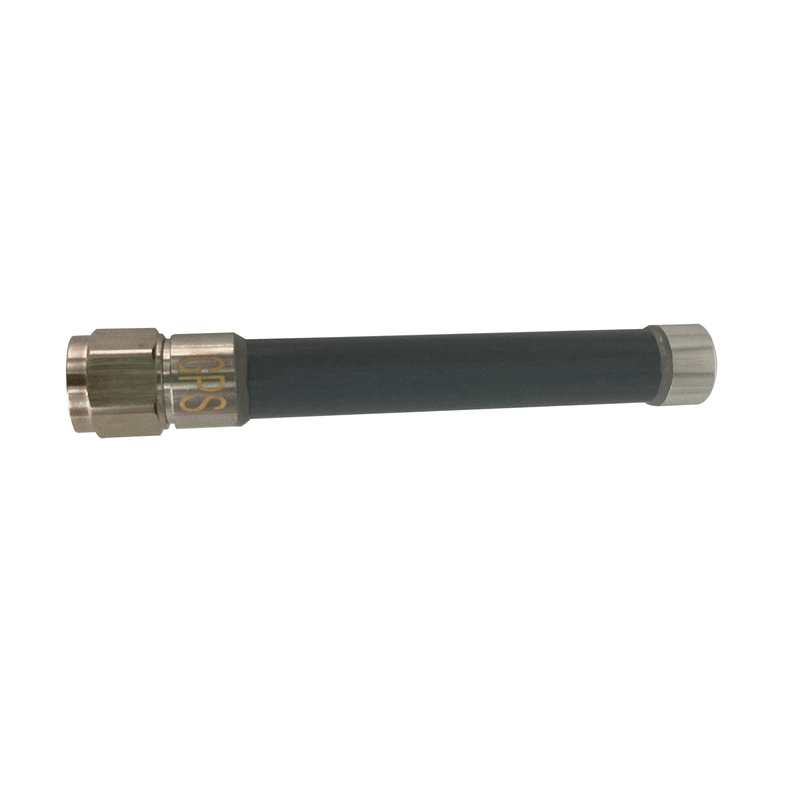

Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130

Satellite Positioning Antenna GNSS Passive Antenna 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130

1. Specification

A. Electrical Characteristics
Frequency 1561.098MHz; 1575.42MHz
VSWR <1.5
Peak Gain 3dBi
Impedance 50Ohm
Efficiency ≈79%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 39-41°
Power 5W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ16x130mm
Radome material Fiberglass
Weight 0.070Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130 0



2.2  LNA Gain:



Frequency(MHz) 1558.0 1559.0 1560.0 1561.0 1562.0 1563.0 1564.0 1565.0
Gain (dBi) 2.84 2.85 2.85 2.84 2.83 2.82 2.79 2.75
Efficiency (%) 85.33 84.74 84.12 83.46 82.80 82.12 81.41 80.67
Frequency(MHz) 1570.0 1571.0 1572.0 1573.0 1574.0 1575.0 1576.0 1577.0 1578.0 1579.0 1580.0
Gain (dBi) 2.50 2.50 2.51 2.52 2.53 2.54 2.47 2.44 2.41 2.39 2.39
Efficiency (%) 76.45 76.88 77.38 77.92 78.43 78.94 78.07 77.24 76.52 75.95 75.57



2.3 Radiation Pattern
  3D 2D-Horizontal 2D-Vertical
1561MHz Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130 1 Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130 2 Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130 3
1575MHz Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130 4 Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130 5 Passive Gnss Antenna Gps 1561MHz 1575.42 MHz 1602MHz 3dBi 16x130 6





































Tags:

satellite antenna positioning,

GNSS antenna,

GPS active antenna
