14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25
14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25
14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25
14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25
14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25
14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25

14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10275-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

14dBi UWB Antenna

,

Ultrawideband Antennas

,

Outdoor Flat Panel antenna 3700-4200MHz

Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
14dBi
Impedance:
50
Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
14dBi
Impedance:
50
Description

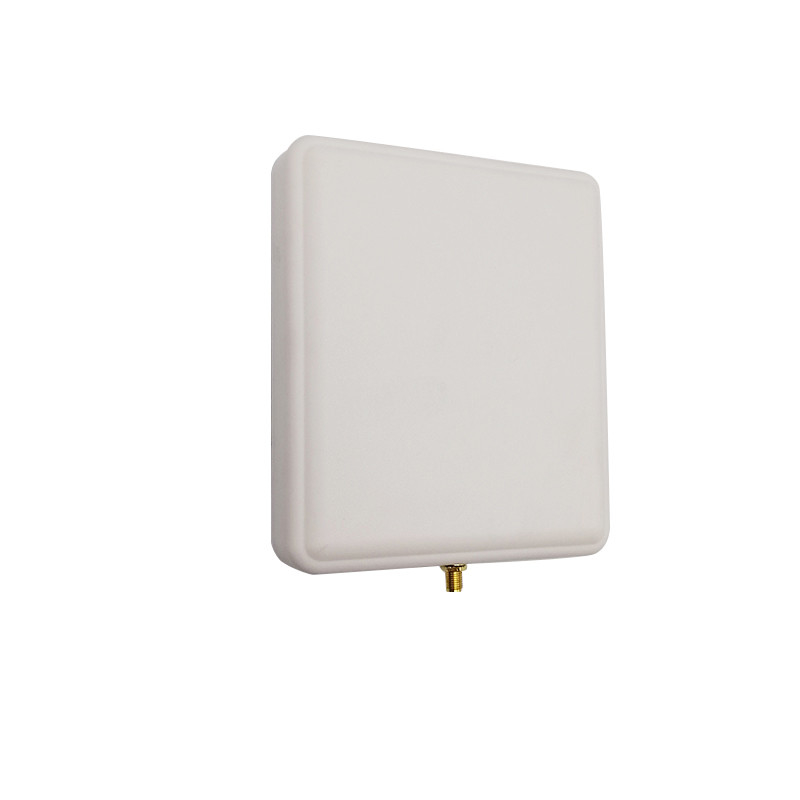

14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25

UWB Antenna Outdoor Flat Panel antenna 3700-4200MHz 14 dBi SMA connector 140x120x25

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <= 1.8
Antenna Gain 14dBi
Polarization Vertical
Horizontal Beamwidth 37-41°
Vertical Beamwidth 31-41°
F/B >23dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Dimension 140*120*25mm
Radome material ABS
Weight 0.37Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s



2. Antenna - S Parameter Test Data
2.1 VSWR

14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25 0





2.2  Total Efficiency & Gain:

Frequency (MHz) 3700.0 3750.0 3800.0 3850.0 3900.0 3950.0 4000.0 4050.0 4100.0 4150.0 4200.0
Gain (dBi) 12.279 12.139 12.294 12.342 12.884 13.190 13.462 13.360 13.500 13.556 13.694




2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
3700MHz 14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25 1 14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25 2 14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25 3
3950MHz 14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25 4 14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25 5 14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25 6
4200MHz 14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25 7 14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25 8 14dBi UWB Antenna Outdoor Ultrawideband 3700-4200MHz SMA Connector 140x120x25 9
