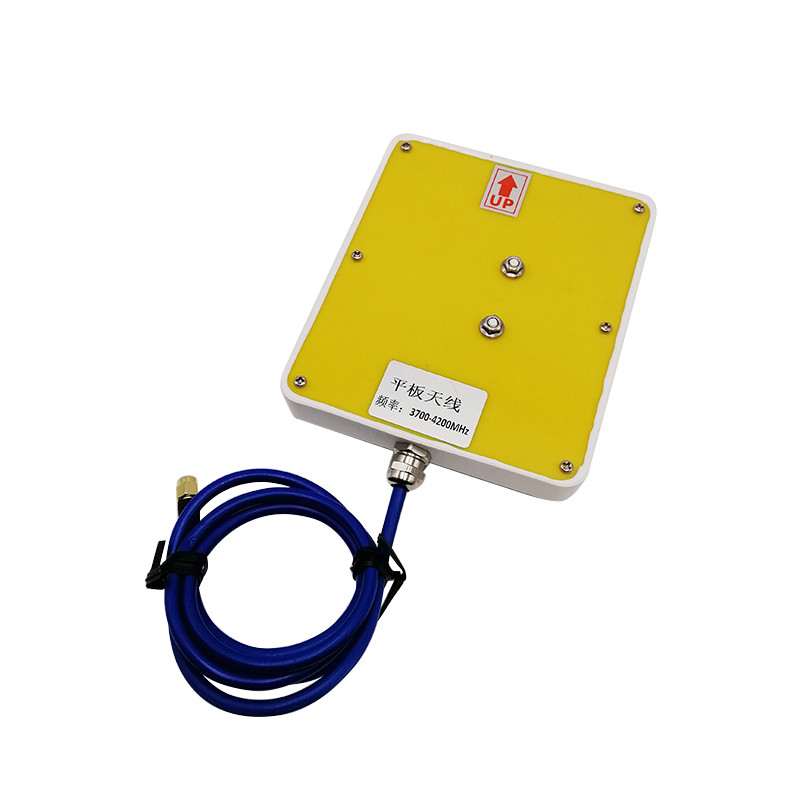

Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm
Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm
Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm
Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm
Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm

Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10108-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

UWB Embedded Antennas

,

ultra wideband pcb antenna 3700-4200MHz 1

,

ultra wideband pcb antenna 140x120x25mm

Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
11dBi
Impedance:
50
Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
11dBi
Impedance:
50
Description
Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm

UWB Antenna Outdoor Panel antenna 3700-4200MHz 11 dBi with RG58 cable 140x120x25

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <= 1.8
Antenna Gain 11dBi
Polarization Vertical
Horizontal Beamwidth 36-40°
Vertical Beamwidth 31-44°
F/B >21dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Cable Type Mine Cable, length 1 meter
Connector Type SMA connector
Dimension 140*120*25mm
Radome material ABS
Weight 0.475Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR


Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm 0



2.2  Total Efficiency & Gain:



Frequency (MHz) 3700.0 3750.0 3800.0 3850.0 3900.0 3950.0 4000.0 4050.0 4100.0 4150.0 4200.0
Gain (dBi) 10.202 10.324 10.2 10.701 10.989 11.335 11.454 11.097 11.166 11.397 11.274



2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
3700MHz Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm 1 Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm 2 Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm 3
3950MHz Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm 4 Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm 5 Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm 6
4200MHz Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm 7 Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm 8 Embedded Ultra Wideband Pcb Antenna 3700-4200MHz 11dBi RG58 Cable 140x120x25mm 9
