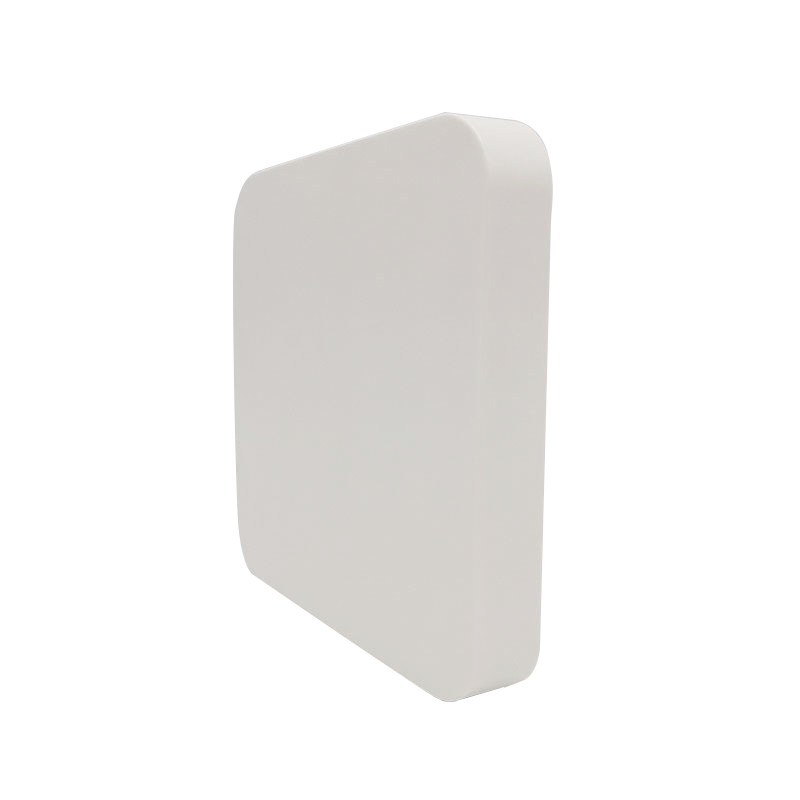

Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm
Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm
Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm
Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm
Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm
Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm

Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10807-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

UWB Antenna Outdoor

,

UWB Antenna 3700-4200MHz

,

Outdoor UWB Antenna

Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
14dBi
Impedance:
50
Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
14dBi
Impedance:
50
Description
Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm

UWB Antenna Outdoor Panel antenna 3700-4200MHz 14 dBi N connector 186x186x28

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <2.0
Antenna Gain 14dBi
Polarization Vertical
Horizontal Beamwidth 33-44°
Vertical Beamwidth 32-39°
F/B >25dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension 186*186*28mm
Radome material ABS
Weight 0.835Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR


Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm 0





2.2  Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
3700 12.3
3750 12.5
3800 13.1
3850 13.3
3900 13.6
3950 13.5
4000 13.5
4050 13.9
4100 13.8
4150 13.6
4200 13.8



2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
3700MHz Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm 1 Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm 2 Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm 3
3950MHz Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm 4 Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm 5 Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm 6
4200MHz Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm 7 Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm 8 Outdoor UWB Antenna Panel Antenna 3700-4200MHz 14dBi N Connector 186x186x28mm 9
