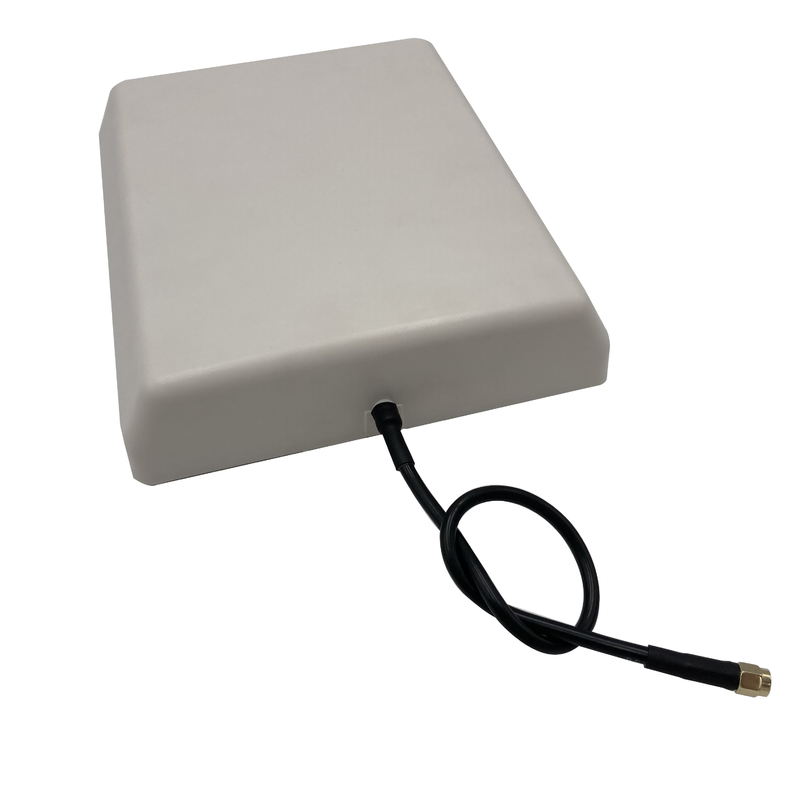

Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm
Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm
Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm
Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm
Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm
Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm

Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10577-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

directive systems antennas

,

900mhz directional antenna

,

900 mhz directional antenna

Frequency:
900+/-5MHz
VSWR:
<2.0
Peak Gain:
7dBi
Impedance:
50
Frequency:
900+/-5MHz
VSWR:
<2.0
Peak Gain:
7dBi
Impedance:
50
Description
Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm

Outdoor Waterproof Directional Antenna IP67 Flat Panel antenna 900M 7dBi 210x180x45mm

1. Specification

A. Electrical Characteristics
Frequency 900+/-5MHz
S.W.R. <2.0
Antenna Gain 7dBi
Polarization Vertical
Horizontal Beamwidth 87°
Vertical Beamwidth 59°
F/B >13dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Cable Type RG58U Cable, length 300mm
Connector Type SMA connector
Dimension 210*180*45mm
Radome material ABS
Weight 0.65Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR


Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm 0





2.2  Total Efficiency & Gain:



Frequency(MHz) Gain(dBi)
895 6.5
896 6.5
897 6.6
898 6.6
899 6.7
900 6.8
901 6.8
902 6.9
903 7.0
904 7.0
905 7.1





2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
895MHz Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm 1 Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm 2 Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm 3
900MHz Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm 4 Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm 5 Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm 6
905MHz Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm 7 Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm 8 Directive Systems Antennas IP67 Flat Panel Antenna 900M 7dBi 210x180x45mm 9
