Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm
Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm
Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm
Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm
Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm
Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm
Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm
Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm

Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10396-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

Outdoor Panel antenna 3700-4200MHz

,

wideband pcb antenna

,

wideband chip antenna 3700-4200MHz

Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
9dBi
Impedance:
50
Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
9dBi
Impedance:
50
Description
Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm

UWB Antenna Outdoor Panel antenna 3700-4200MHz 9 dBi 100x100x23

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <2.0
Antenna Gain 9dBi
Polarization Vertical
Horizontal Beamwidth 55-75°
Vertical Beamwidth 28-44°
F/B >14dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics

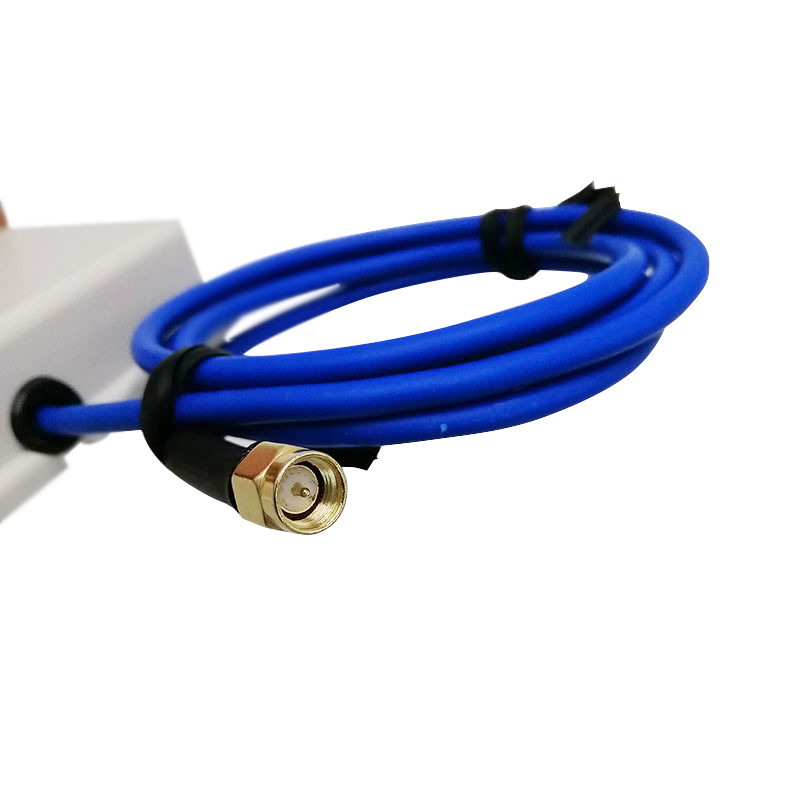

Cable Type Mine Cable, length 1 meter
Connector Type SMA connector
Dimension 100*100*23mm
Radome material ABS
Weight 0.3Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR


Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm 0





2.2  Total Efficiency & Gain:



Frequency(MHz) Gain(dBi)
3700 8.6978
3750 8.2188
3800 8.5625
3850 8.1175
3900 8.8527
3950 8.6745
4000 8.6764
4050 8.6473
4100 8.2032
4150 7.8865
4200 8.6568




2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
3700MHz Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm 1 Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm 2 Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm 3
3950MHz Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm 4 Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm 5 Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm 6
4200MHz Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm 7 Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm 8 Pcb Ultra Wideband Chip Antenna Outdoor Panel Antenna 3700-4200MHz 9dBi 100x100x23mm 9
