Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm
Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm
Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm
Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm

Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10543-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

UWB Antennas 3700-4200MHz

,

Ultra-Wideband UWB Antennas

,

antenne uwb

Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
18dBi
Impedance:
50
Frequency:
3700-4200MHz
VSWR:
<2.0
Peak Gain:
18dBi
Impedance:
50
Description

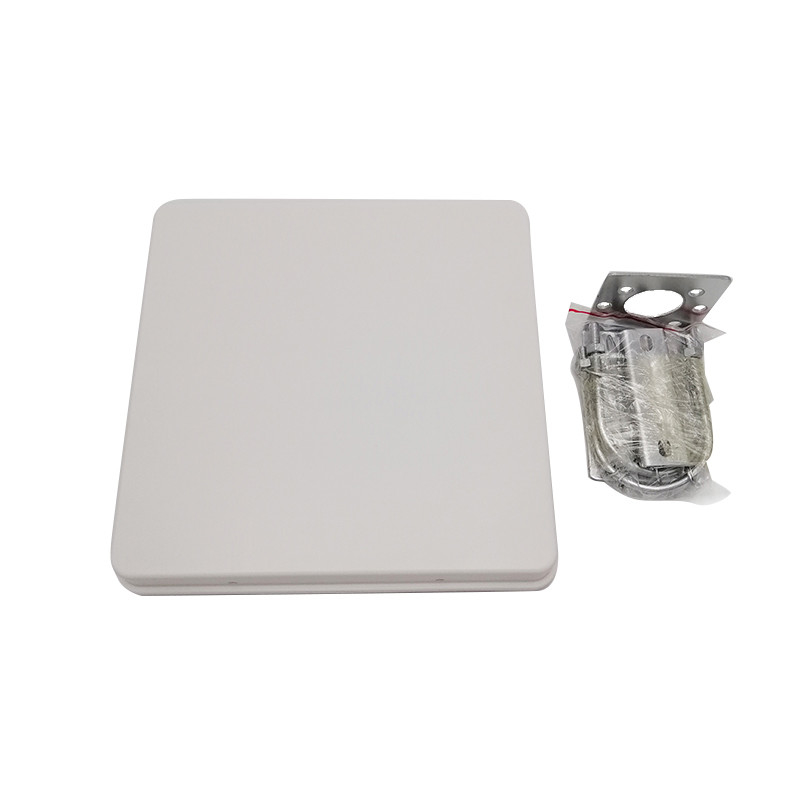

Ultra-Wideband UWB Antennas 3700-4200MHz 17dB N Connector 220x220x25mm

UWB Antenna Outdoor Flat Panel antenna 3700-4200MHz 17 dBi N connector 220x220x25

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <2.0
Antenna Gain 17dBi
Polarization Vertical
Horizontal Beamwidth 13-15°
Vertical Beamwidth 23-25°
F/B >24dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension 220*220*25mm
Radome material ABS
Weight 1.09Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity

36.9m/s



2. Antenna - S Parameter Test Data
2.1 VSWR
