Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25

Name: Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10886-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10886-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              Directional Antenna 14dBi, Antenna GNSS, Flat Panel Antenna


Frequency:	1560-1620MHz; 2400-2500MHz; 5700-5900MHz	VSWR:	<1.6
Peak Gain:	8dBi/10dBi/15dBi	Impedance:	50

Frequency:	1560-1620MHz; 2400-2500MHz; 5700-5900MHz
VSWR:	<1.6
Peak Gain:	8dBi/10dBi/15dBi
Impedance:	50

Description

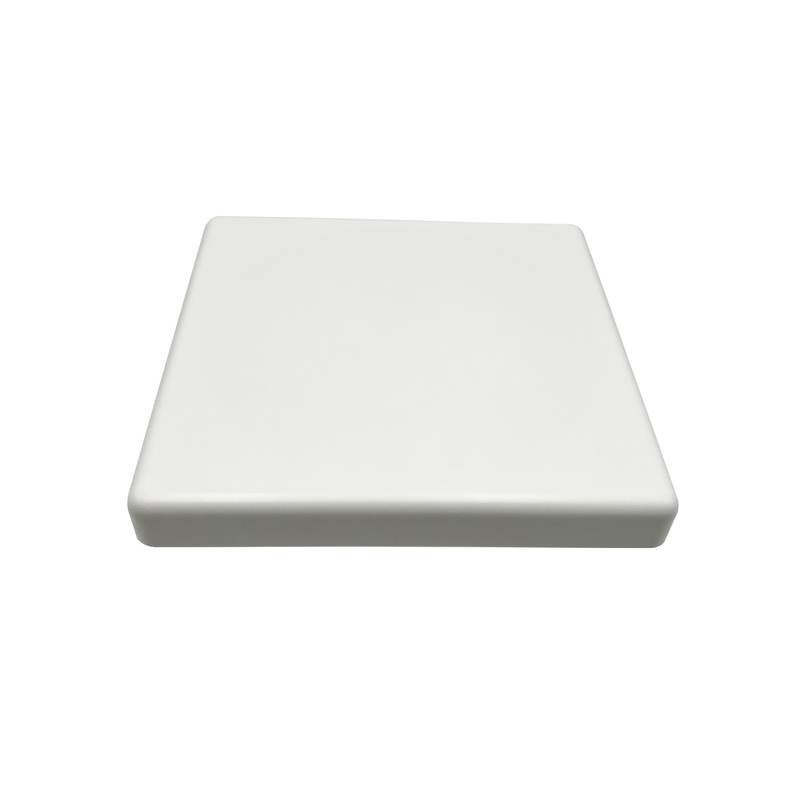

Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25

Outdoor Waterproof Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25

1. Specification

A. Electrical Characteristics
Port	Port 1	Port 2	Port 3
Frequency	1560-1620MHz	2400-2500MHz	5700-5900MHz
VSWR	< 1.6	< 1.6	< 1.6
Peak Gain	8dBi	10dBi	15dBi
Impedance	50 Ohm	50 Ohm	50 Ohm
Polarization	RDHP	Vertical	Vertical
Horizontal Beamwidth	67-72°	59-61°	32-41°
Vertical Beamwidth	70-76°	42-44°	32-35°
F/B	＞20dB	＞23dB	＞23dB
Max Power	50W	50W	50W
B. Material & Mechanical
Connector Type	SMA-K*3
Dimension	22522525mm
Weight	0.86Kg
Radome material	ABS
C. Environmental
Operation Temperature	- 45˚C ~ +85 ˚C
Storage Temperature	- 45˚C ~ +85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data
2.1 VSWR
Port1

Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 0

Port2

Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 1

Pot3

Directional Antenna Flat Panel Antenna GNSS 2.4&5.8GHz 14dBi 220x220x25 2
2.2 Total Efficiency & Gain:

Port 1		Port 2		Port 3
Frequency(MHz)	Gain(dBi)	Frequency(MHz)	Gain(dBi)	Frequency(MHz)	Gain(dBi)
1560	7.6	2400	10.6	5700	14.0
1570	7.0	2410	10.6	5725	13.8
1580	8.4	2420	10.8	5750	13.9
1590	8.7	2430	10.8	5775	13.9
1600	7.3	2440	10.7	5800	14.0
1610	8.2	2450	10.8	5825	14.1
1620	8.1	2460	10.8	5850	14.4
		2470	10.8	5875	15.0
		2480	10.8	5900	15.0
		2490	10.8
		2500	10.8
