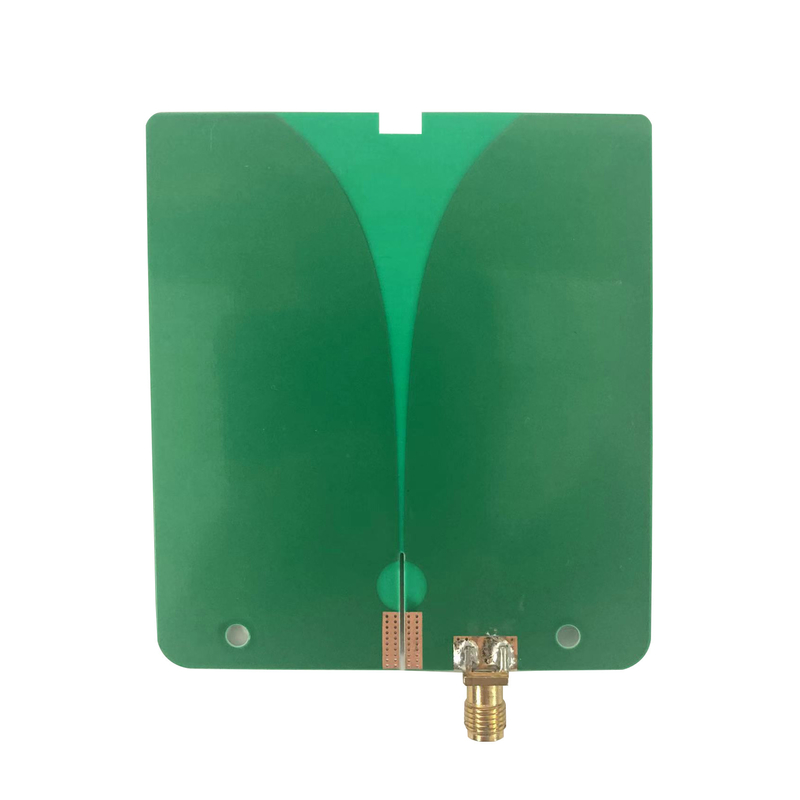

Uwb Directional Antenna PCB Antenna 1.3Hz-13.4GHz 9dBi 80x72x0.6

Name: Uwb Directional Antenna PCB Antenna 1.3Hz-13.4GHz 9dBi 80x72x0.6
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10283-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10283-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              uwb directional antenna 1.3Hz-13.4GHz, PCB antenna 1.3Hz-13.4GHz, uwb pcb antenna


Frequency:	1300-8500MHz; 8500-13400MHz	VSWR:	<3.0
Peak Gain:	9dBi	Impedance:	50

Frequency:	1300-8500MHz; 8500-13400MHz
VSWR:	<3.0
Peak Gain:	9dBi
Impedance:	50

Description

Uwb Directional Antenna PCB Antenna 1.3Hz-13.4GHz 9dBi 80x72x0.6

Outdoor waterproof directional Antenna UWB antenna PCB antenna 1.3Hz-13.4GHz 9dBi 80x72x0.6

1. Specification

A. Electrical Characteristics
Frequency	1.3-8.5GHz	8.5-13.4GHz
S.W.R.	<3.0	<3.0
Antenna Gain	9dBi	9dBi
Polarization	Vertical	Vertical
Horizontal Beamwidth	30°- 360°	30°- 360°
Vertical Beamwidth	40°- 100°	45°- 65°
Impedance	50Ohm	50Ohm
Max. Power	50W	50W
B. Material & Mechanical Characteristics
Connector Type	SMA connector
Dimension	80720.6mm
Weight	0.01Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%

2. Antenna - S Parameter Test Data

2.1 VSWR

Uwb Directional Antenna PCB Antenna 1.3Hz-13.4GHz 9dBi 80x72x0.6 0

2.2 Total Efficiency & Gain:

1300-8500MHz
Frequency(MHz)	Gain(dBi)	Efficiency (%)	Frequency (MHz)	Gain (dBi)	Efficiency (%)
1300.0	0.01	62.20	5000.0	6.48	78.29
1400.0	1.76	74.00	5100.0	6.40	78.50
1500.0	2.17	79.68	5200.0	6.76	79.44
1600.0	2.02	78.78	5300.0	8.19	88.59
1700.0	3.03	70.77	5400.0	7.32	87.10
1800.0	2.16	68.60	5500.0	8.42	84.79
1900.0	2.80	61.06	5600.0	7.70	86.74
2000.0	2.20	64.02	5700.0	7.97	90.83
2100.0	2.04	67.85	5800.0	8.38	89.74
2200.0	3.06	67.08	5900.0	8.49	88.75
2300.0	2.43	65.19	6000.0	8.08	89.51
2400.0	2.55	64.84	6100.0	7.72	87.95
2500.0	2.61	61.57	6200.0	7.87	87.79
2600.0	3.81	67.20	6300.0	8.12	87.11
2700.0	3.08	72.82	6400.0	7.45	86.42
2800.0	3.32	72.87	6500.0	7.37	87.14
2900.0	3.75	75.42	6600.0	7.91	84.92
3000.0	3.75	71.12	6700.0	8.14	88.13
3100.0	3.70	72.08	6800.0	7.76	84.09
3200.0	3.66	71.22	6900.0	8.30	88.31
3300.0	3.42	71.21	7000.0	8.84	84.68
3400.0	4.06	75.37	7100.0	8.74	77.76
3500.0	4.27	75.97	7200.0	8.07	82.01
3600.0	4.93	81.77	7300.0	7.93	81.13
3700.0	5.24	84.23	7400.0	8.66	86.86
3800.0	4.50	88.16	7500.0	7.98	74.31
3900.0	4.86	85.81	7600.0	7.81	69.83
4000.0	5.53	85.43	7700.0	7.58	65.39
4100.0	5.60	88.00	7800.0	8.00	70.00
4200.0	6.12	86.25	7900.0	7.95	67.45
4300.0	6.17	84.47	8000.0	7.43	63.03
4400.0	6.13	84.50	8100.0	7.20	60.49
4500.0	6.32	86.50	8200.0	7.36	61.42
4600.0	6.32	83.36	8300.0	8.04	69.58
4700.0	5.87	84.05	8400.0	8.21	78.04
4800.0	6.46	81.94	8500.0	7.90	78.03
4900.0	6.99	84.11

8500-13400MHz
Frequency(MHz)	Gain(dBi)	Efficiency (%)	Frequency (MHz)	Gain (dBi)	Efficiency (%)
8500.0	7.90	83.18	12200.0	6.91	78.64
8600.0	7.60	75.21	12300.0	6.57	79.73
8700.0	8.01	78.29	12400.0	6.36	79.08
8800.0	8.35	78.20	12500.0	6.49	78.76
8900.0	8.72	88.91	12600.0	6.47	74.43
9000.0	8.35	86.15	12700.0	6.99	82.11
9100.0	8.60	86.63	12800.0	6.62	78.16
9200.0	8.91	87.64	12900.0	6.81	75.23
9300.0	9.02	92.17	13000.0	7.53	81.33
9400.0	9.02	99.19	13100.0	7.46	81.22
9500.0	8.68	94.94	13200.0	7.49	84.20
9600.0	8.53	93.97	13300.0	7.32	84.78
9700.0	8.35	89.70	13400.0	7.34	74.56
9800.0	8.20	85.51
9900.0	8.57	88.71
10000.0	8.36	83.09
10100.0	8.22	84.35
10200.0	7.97	83.75
10300.0	8.10	84.91
10400.0	8.28	86.02
10500.0	8.59	86.57
10600.0	8.29	86.14
10700.0	7.97	86.30
10800.0	7.77	85.88
10900.0	7.62	78.93
11000.0	8.21	84.62
11100.0	8.10	84.63
11200.0	8.19	94.51
11300.0	7.55	91.72
11400.0	7.67	92.95
11500.0	7.39	90.51
11600.0	7.14	86.59
11700.0	7.31	93.80
11800.0	7.15	89.58
11900.0	7.33	92.23
12000.0	6.48	78.59
12100.0	6.93	78.46
