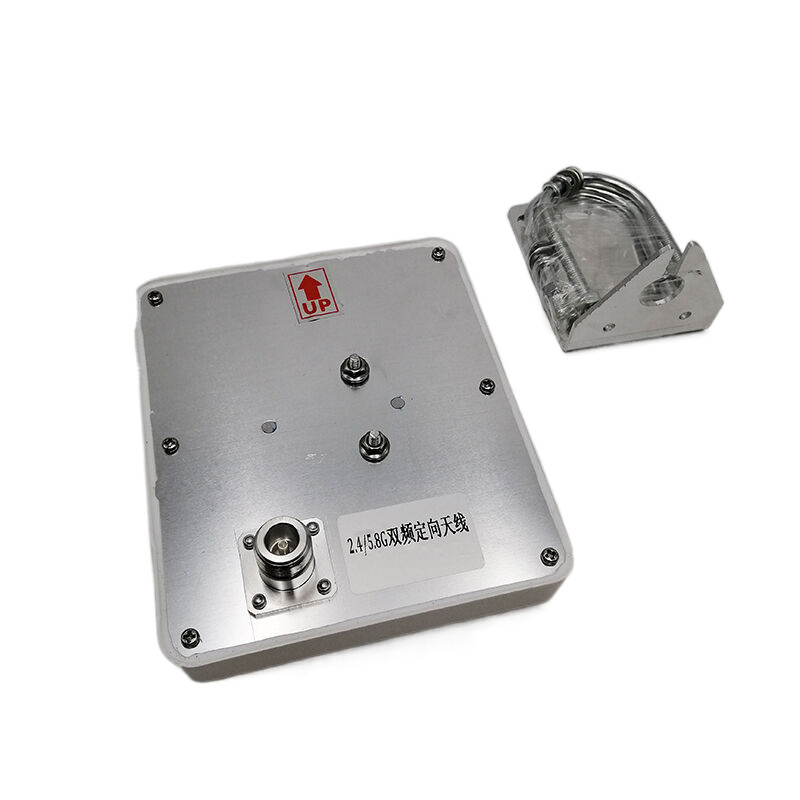

2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25

1. Specification

Electrical Characteristics
Frequency 2400-2500MHz 5150-5850MHz
S.W.R. <2.0 <2.0
Antenna Gain 9dBi 12dBi
Polarization Vertical Vertical
Horizontal Beamwidth 74-77° 43-60°
Vertical Beamwidth 43-44° 19-25°
F/B >18dB >17dB
Impedance 50Ohm 50Ohm
Max. Power 50W 50W
Material & Mechanical Characteristics
Connector Type N connector
Dimension 140*120*25mm
Radome material ABS
Weight 0.30Kg
Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s



2. Antenna - S Parameter Test Data

2.1 VSWR



2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 0





2.2  Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
2400 9.5913
2410 9.4423
2420 9.2006
2430 9.2808
2440 9.2012
2450 9.3022
2460 9.1597
2470 9.2641
2480 9.0367
2490 9.035
2500 9.0594
Frequency(MHz) Gain(dBi)
5150 11.952
5200 11.726
5250 11.622
5300 11.275
5350 11.311
5400 11.307
5450 11.394
5500 11.119
5550 11.341
5600 11.655
5650 11.621
5700 12.138
5750 11.981
5800 11.867
5850 12.476





2.3 Radiation Pattern



  2D-Horizontal 2D-Vertical Horizontal & Vertical
2400MHz 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 1 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 2 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 3
2450MHz 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 4 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 5 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 6
2500MHz 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 7 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 8 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 9



5.8G 2D-Horizontal 2D-Vertical Horizontal & Vertical
5150MHz 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 10 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 11 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 12
5500MHz 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 13 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 14 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 15
5850MHz 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 16 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 17 2.4GHz 5.8GHz Dual Band Directional Wifi Antenna Outdoor 11dBi 140x120x25 18
