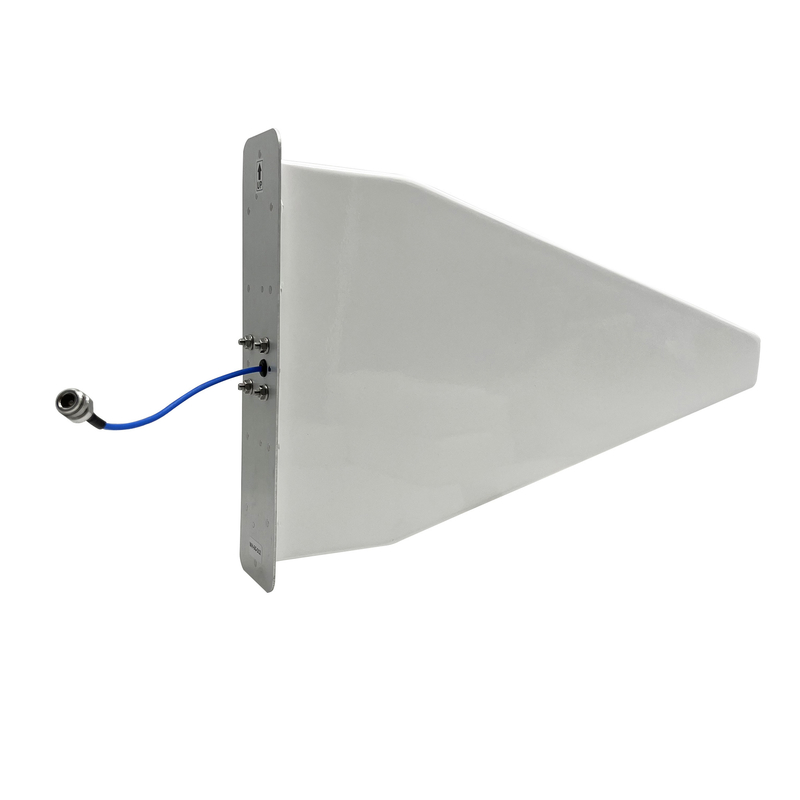

Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10867-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
1. Specification A. Electrical Characteristics Frequency 400-7000MHz S.W.R.
Product Details
Highlight:
Waterproof LPDA Outdoor Directional Antenna
,7000MHz Outdoor Directional Antenna
,550x350x80MM Outdoor Directional Antenna
Frequency:
400-7000MHz
VSWR:
<2.2
Peak Gain:
7dBi
Impedance:
50
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 400-7000MHz |
| S.W.R. | <=2.2 |
| Antenna Gain | 7dBi |
| Efficiency | 58% |
| Polarization | Vertical |
| Horizontal Beamwidth | 40-360° |
| Vertical Beamwidth | 20-80° |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Cable Type | 50-3 Type Cable |
| Dimension | 550*350*80mm |
| Mount Pole | ∅30-∅50 |
| Weight | 2.4Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) |
| 400 | 2.7 | 1100 | 4.5 | 4200 | 6.9 |
| 420 | 2.9 | 1200 | 5.4 | 4300 | 6.0 |
| 440 | 0.7 | 1300 | 5.5 | 4400 | 5.7 |
| 460 | 2.9 | 1400 | 4.7 | 4500 | 5.3 |
| 480 | 4.6 | 1500 | 6.2 | 4600 | 5.0 |
| 500 | 4.4 | 1600 | 5.4 | 4700 | 4.5 |
| 520 | 3.4 | 1700 | 4.5 | 4800 | 3.8 |
| 540 | 4.1 | 1800 | 6.1 | 4900 | 4.1 |
| 560 | 4.2 | 1900 | 5.4 | 5000 | 5.3 |
| 580 | 0.4 | 2000 | 5.1 | 5100 | 5.2 |
| 600 | 4.1 | 2100 | 6.2 | 5200 | 5.2 |
| 620 | 4.1 | 2200 | 6.7 | 5300 | 5.1 |
| 640 | 2.7 | 2300 | 5.2 | 5400 | 4.7 |
| 660 | 4.1 | 2400 | 5.3 | 5500 | 4.5 |
| 680 | 4.9 | 2500 | 5.1 | 5600 | 5.1 |
| 700 | 5.2 | 2600 | 5.9 | 5700 | 4.5 |
| 720 | 4.5 | 2700 | 4.8 | 5800 | 4.2 |
| 740 | 5.4 | 2800 | 5.7 | 5900 | 4.8 |
| 760 | 3.9 | 2900 | 5.8 | 6000 | 5.5 |
| 780 | 6.0 | 3000 | 6.5 | 6100 | 6.4 |
| 800 | 6.8 | 3100 | 5.2 | 6200 | 6.6 |
| 820 | 6.7 | 3200 | 6.2 | 6300 | 5.3 |
| 840 | 5.8 | 3300 | 5.8 | 6400 | 4.7 |
| 860 | 4.7 | 3400 | 5.7 | 6500 | 5.7 |
| 880 | 4.8 | 3500 | 6.6 | 6600 | 5.4 |
| 900 | 5.3 | 3600 | 7.0 | 6700 | 5.3 |
| 920 | 4.2 | 3700 | 6.5 | 6800 | 5.3 |
| 940 | 5.0 | 3800 | 5.0 | 6900 | 4.6 |
| 960 | 5.3 | 3900 | 4.4 | 7000 | 4.0 |
| 980 | 4.8 | 4000 | 4.9 | ||
| 1000 | 5.4 | 4100 | 5.6 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 400MHz | |
|
|
| 800MHz | |
|
|
| 960MHz | |
|
|
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1700MHz | |
|
|
| 2700MHz | |
|
|
| 3800MHz | |
|
|
| 3D | 2D-Horizontal | 2D-Vertical | |
| 4500MHz | |
|
|
| 5500MHz | |
|
|
| 7000MHz | |
|
|
