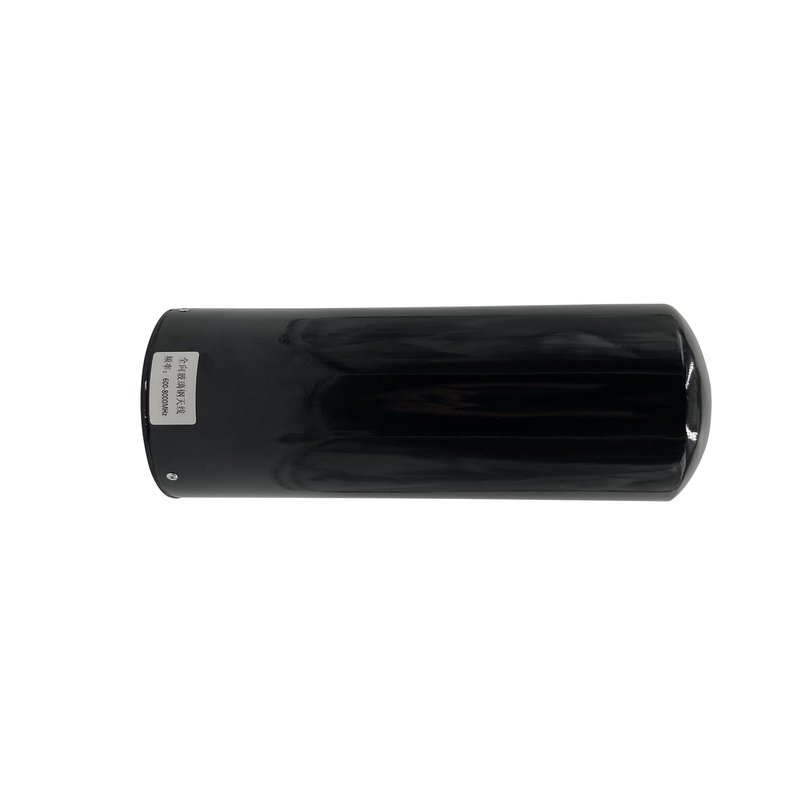

Custom Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz

Name: Custom Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10502-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10502-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              custom antenna, IP67 Fiberglass Antenna, Fiberglass Antenna 600-8000MHz


Frequency:	600-8000MHz	VSWR:	<6.0
Peak Gain:	6dBi	Impedance:	50 OHM

Frequency:	600-8000MHz
VSWR:	<6.0
Peak Gain:	6dBi
Impedance:	50 OHM

Description

Custom Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz

Customize Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz

1. Specification

A. Electrical Characteristics
Frequency	600-960MHz	960-7800MHz	7800-8000MHz
S.W.R.	<2.5	<3.0	<6.0
Antenna Gain	3dBi	6dBi	5dBi
Polarization	Linear	Linear	Linear
Horizontal Beamwidth	360°	60-230°	60°
Vertical Beamwidth	50-100°	20-120°	20-70°
Impedance	50 Ohm	50 Ohm	50 Ohm
Max Power	50W	50W	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	Φ110*320mm
Weight	1.075Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data

2.1 VSWR

Custom Antenna Outdoor IP67 Omnidirectional Fiberglass Antenna 600-8000MHz 0

2.2 Total Efficiency & Gain:

Frequency(MHz)

600

700

800

900

1000

1100

1200

1300

1400

1500

1600

1700

1800

1900

2000

2100

2200

2300

2400

2500

2600

2700

2800

2900

3000

3100

3200

3300

3400

3500

3600

3700

3800

3900

4000

4100

4200

4300

4400

4500

Gain(dBi)

0.27

2.96

1.62

2.13

1.8

2.63

2.92

2.07

2.94

3.3

3.56

3.12

2.45

2.21

1.92

1.4

1.81

1.96

2.85

3.8

2.52

2.8

3.18

4.14

3.5

2.26

2.12

2.56

2.88

3.24

3.51

3.85

3.45

3.36

3.35

3.26

2.7

2.8

2.81

2.76

Efficiency (%)

61.27

87.75

80.81

78.43

80.82

89.26

83.2

74.78

83.75

81.59

92.05

83.74

77.38

73.92

79.86

80.07

80.65

84.33

82.33

79.8

83.54

80.53

86.38

73.01

69.32

68.92

75.14

75.35

82.55

85.16

81.19

82.05

88.25

87.86

85.14

81.37

81.05

83.07

83.3

Frequency(MHz)	4600	4700	4800	4900	5000	5100	5200	5300	5400	5500	5600	5700	5800	5900	6000	6100	6200	6300	6400	6500	6600	6700	6800	6900	7000	7100	7200	7300	7400	7500	7600	7700	7800	7900	8000	8100	8200	8300	8400	8500
Gain(dBi)	2.32	2.81	3.33	3.25	2.84	2.96	3.49	3.9	4.01	4.26	4.75	5.73	5.93	5.91	5.6	5.36	5.36	5.43	5.21	4.43	4.41	4.18	4.29	4.75	4.94	5.3	5.13	4.71	5.07	5.23	5	4.79	4.81	5.02	4.7	4.63	4.77	5.19	5.37	5.02
Efficiency (%)	76.62	78.79	80.42	82.32	73.57	73.22	76.38	75.87	75.76	70.52	71	80.14	77.99	76.29	69.7	68.28	72.87	78.21	77.65	73.09	73.61	76.04	77.68	83.76	80.22	79.3	78	79	85.74	82.78	79.16	80.3	79.92	77.99	68.08	68.5	70.14	72.39	76.9	73.2

2.3 Radiation Pattern

	3D	2D-Horizontal	2D-Vertical
600MHz
900MHz
1700MHz

	3D	2D-Horizontal	2D-Vertical
2700MHz
5000MHz
8000MHz
