Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10707-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
Magnetic Mount Antenna 4G Antenna RG174 Cable 30x225 1. Specification A. Electrical Characteristics Frequency 824-960MHz 1710-2700MHz Impedance 50 Ohm 50 Ohm S.W.R.
Product Details
Highlight:
4g magnetic antenna
,external magnetic mount antenna
,gps magnetic mount antenna
Frequency:
700-960MHz; 1710-2700MHz
VSWR:
<1.5
Peak Gain:
-1.4dBi
Impedance:
50
Product Description

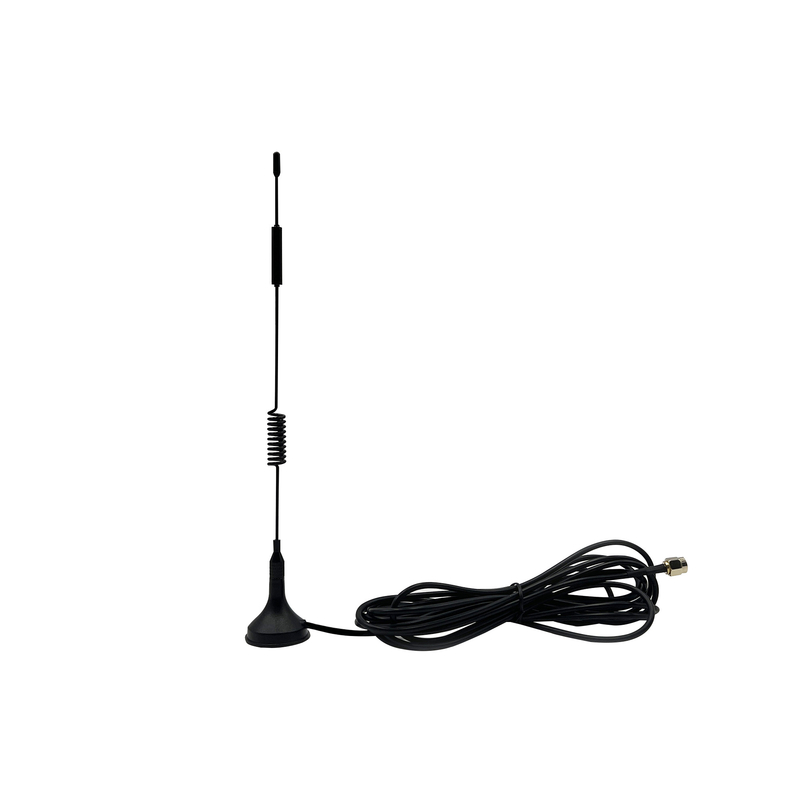

Magnetic Mount Antenna 4G Antenna RG174 Cable 30x225
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 824-960MHz | 1710-2700MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2.0 | <2.0 |
| Gain | -1.4dBi | -2.2dBi |
| Efficiency | ≈10% | ≈10% |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 34-146° | 24-53° |
| Max Power | 50W | 50W |
| B. Material & Mechanical Characteristics | ||
| Connector Type | SMA connector | |
| Cable Type | RG174 Cable | |
| Dimension | Φ30*225mm | |
| Weight | 0.048Kg | |
| Antenna material | Carbon Steel | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 690.0 | 720.0 | 750.0 | 780.0 | 810.0 | 840.0 | 870.0 | 900.0 | 930.0 | 960.0 |
| Gain (dBi) | -7.76 | -9.19 | -9.09 | -7.15 | -8.46 | -9.13 | -8.50 | -3.44 | -1.47 | -2.18 |
| Efficiency (%) | 9.35 | 6.67 | 6.51 | 7.11 | 4.30 | 3.07 | 4.25 | 14.68 | 17.47 | 24.22 |
| Frequency(MHz) | 1700.0 |
1800.0 |
1900.0 | 2000.0 | 2100.0 | 2200.0 | 2300.0 | 2400.0 | 2500.0 | 2600.0 | 2700.0 |
| Gain (dBi) | -4.13 | -2.57 | -4.53 | -3.24 | -2.24 | -4.60 | -5.37 | -6.84 | -5.09 | -7.87 | -7.97 |
| Efficiency (%) | 14.74 | 13.76 | 9.89 | 13.53 | 15.48 | 11.42 | 7.60 | 5.95 | 7.06 | 5.25 | 5.70 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 690MHz | |
|
|
| 840MHz | |
|
|
| 960MHz | |
|
|
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1700MHz | |
|
|
| 2200MHz | |
|
|
| 2700MHz | |
|
|
