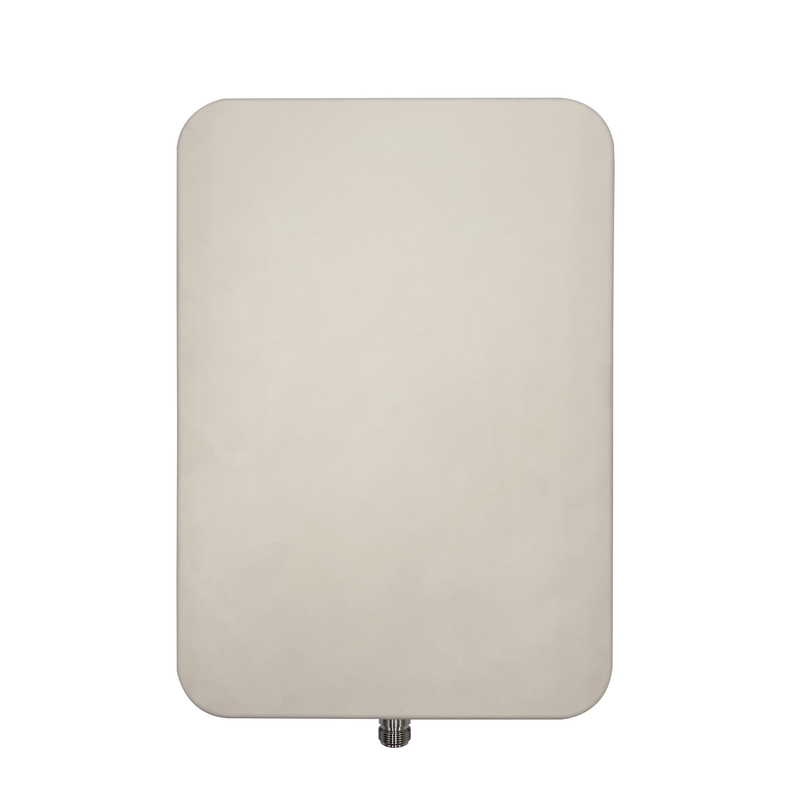

IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM
IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM
IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM
IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM
IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM

IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: TZAY91509-PNFMA

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

IP67 outdoor directional antenna

,

RFID outdoor directional antenna

,

9DBI outdoor panel antenna

Frequency:
902-928MHz
VSWR:
<1.5
Peak Gain:
9dBi
Impedance:
50
Frequency:
902-928MHz
VSWR:
<1.5
Peak Gain:
9dBi
Impedance:
50
Description
IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM

1. Specification

A. Electrical Characteristics
Frequency 902-928MHz
Impedance 50 Ohm
S.W.R. <1.5
Antenna Gain 9dBi
Polarization DHCP
Horizontal Beamwidth 75-79°
Vertical Beamwidth 60-63°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension 290*205*40mm
Weight 1.25Kg
Radome material ABS
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground



2. Antenna - S Parameter Test Data

2.1 VSWR

IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM 0



2.2  Total Efficiency & Gain:

Frequency(MHz) 900 902 904 906 908 910 912 914 916 918 920 922 924 926 928 930
Gain(dBi) 7.9 8 8.2 8.3 8.5 8.6 8.6 8.7 8.7 8.8 8.8 8.8 8.7 8.8 8.9 9


2.3 Radiation Pattern
  2D-Horizontal 2D-Vertical Horizontal & Vertical
902MHz IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM 1 IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM 2 IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM 3
915MHz IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM 4 IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM 5 IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM 6
928MHz IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM 7 IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM 8 IP67 RFID Outdoor Directional Antenna 902-928MHZ 9DBI 290X204X40MM 9
