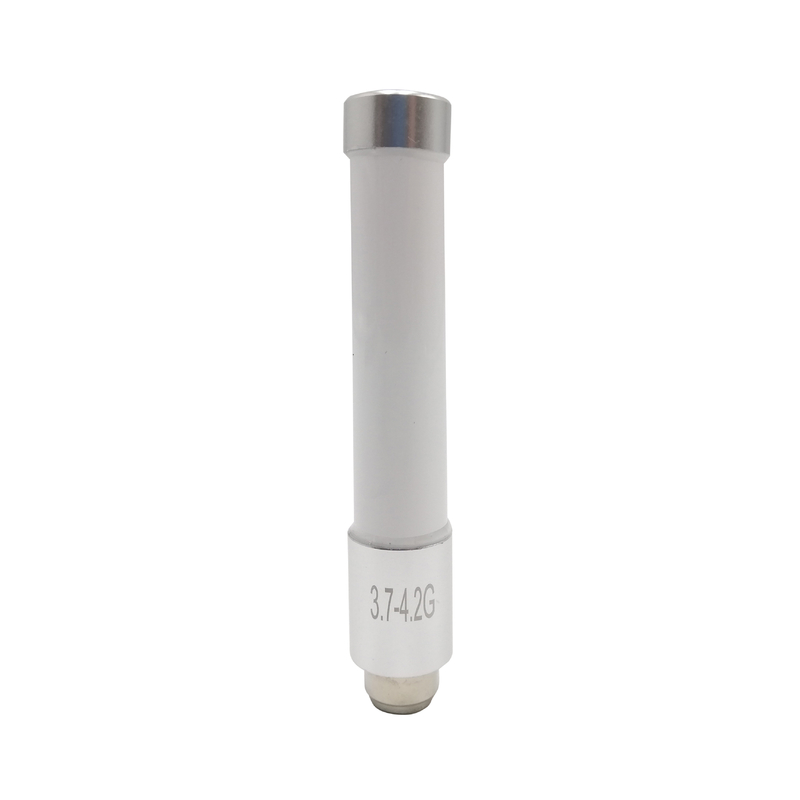

IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm
IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm
IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm
IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm
IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm
IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm
IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm

IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10176-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

5G Outdoor Omnidirectional Antenna

,

IP67 Outdoor Omnidirectional Antenna

,

3700-4200MHz Outdoor Omnidirectional Antenna

Frequency:
3700-4200MHz
VSWR:
<1.6
Peak Gain:
3dBi
Impedance:
50
Frequency:
3700-4200MHz
VSWR:
<1.6
Peak Gain:
3dBi
Impedance:
50
Description
IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
Impedance 50 Ohm
S.W.R. <1.6
Antenna Gain 3dBi
Efficiency ≈84%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 50°@3950MHz
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Dimension Φ16*100mm
Weight 0.031Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground



2. Antenna - S Parameter Test Data

2.1 VSWR

IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm 0



2.2  Total Efficiency & Gain:

Frequency(MHz) 3700.0 3750.0 3800.0 3850.0 3900.0 3950.0 4000.0 4050.0 4100.0 4150.0 4200.0
Gain (dBi) 2.84 2.86 3.14 3.26 3.22 3.26 3.14 3.24 2.83 2.75 2.56
Efficiency (%) 81.12 80.35 86.40 91.07 88.76 88.74 85.04 87.61 81.38 80.31 78.68

IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm 1
2.3 Radiation Pattern
  3D 2D-Horizontal 2D-Vertical
3700MHz IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm 2 IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm 3 IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm 4
3950MHz IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm 5 IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm 6 IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm 7
4200MHz IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm 8 IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm 9 IP67 5G Fiberglass Outdoor Omnidirectional Antenna 3700-4200MHz 3dBi Gain 16x100mm 10
