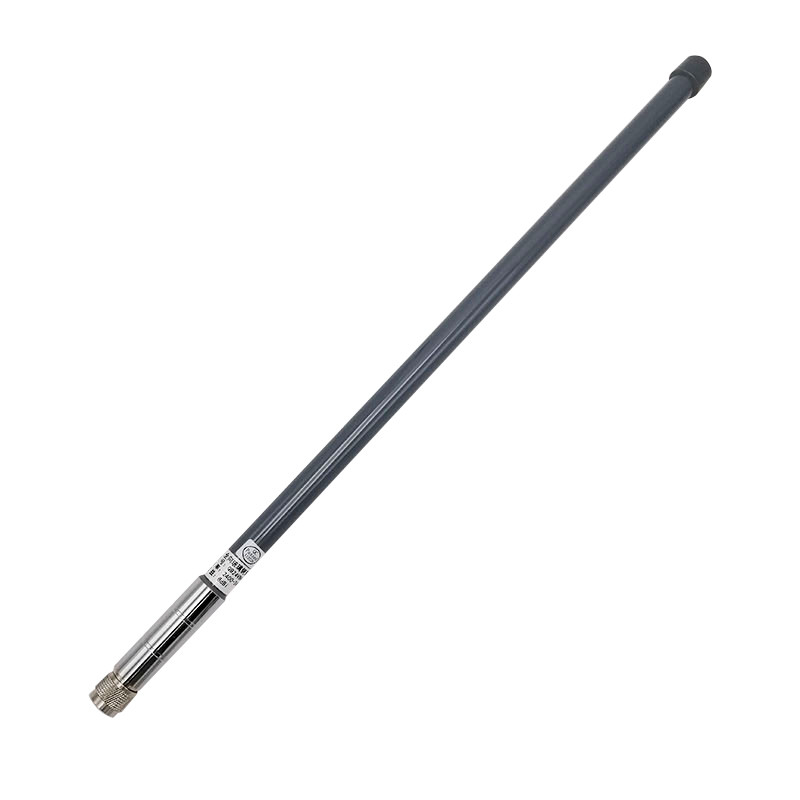

Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10403-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
1. Specification A. Electrical Characteristics Frequency 2400-2500MHz Impedance 50 Ohm S.W.R.
Product Details
Highlight:
2.4G Omni Antenna
,18.5x570mm Omni Antenna
,8dBi Omni Antenna
Frequency:
2400-2500MHz
VSWR:
<1
Peak Gain:
8dBi
Impedance:
50
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500MHz |
| Impedance | 50 Ohm |
| S.W.R. | <1.5 |
| Antenna Gain | 8dBi |
| Efficiency | ≈83% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 15°±2° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | Φ18.5*570mm |
| Weight | 0.275Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 2400.0 | 2410.0 | 2420.0 | 2430.0 | 2440.0 | 2450.0 | 2460.0 | 2470.0 | 2480.0 | 2490.0 | 2500.0 |
| Gain (dBi) | 7.65 | 7.65 | 7.70 | 7.79 | 7.86 | 7.90 | 7.91 | 7.88 | 7.79 | 7.88 | 7.90 |
| Efficiency (%) | 83.58 | 82.46 | 82.10 | 83.08 | 84.18 | 86.11 | 85.06 | 83.42 | 82.20 | 83.02 | 81.80 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz | |
|
|
| 2450MHz | |
|
|
| 2500MHz | |
|
|
