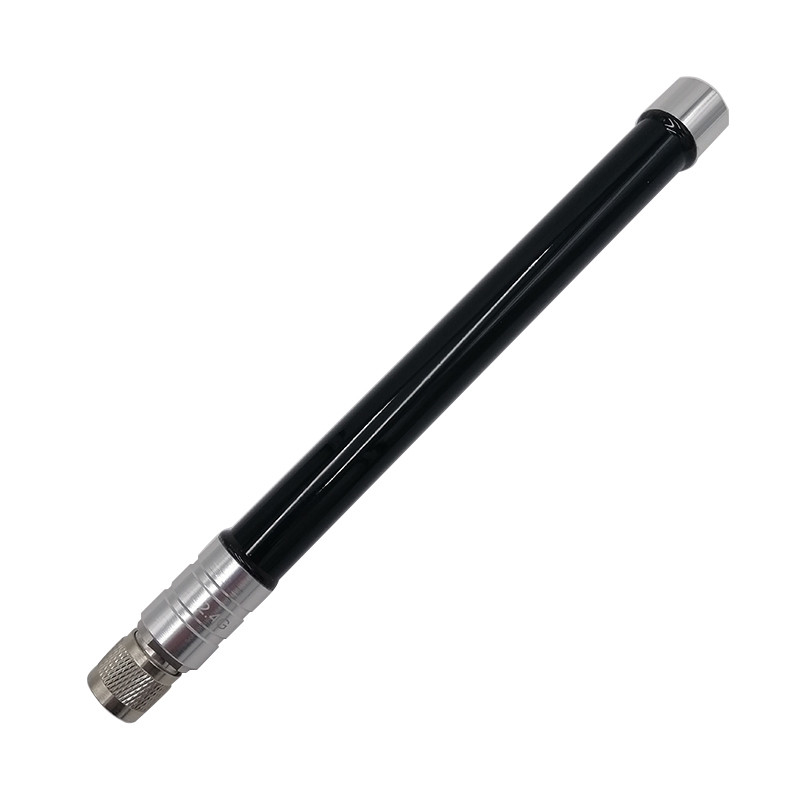

IP67 Fiberglass FRP 2.4G Omni Directional Wifi Antenna Outdoor 16x250mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10733-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
1. Specification A. Electrical Characteristics Frequency 2400-2500MHz Impedance 50 Ohm S.W.R.
Product Details
Highlight:
IP67 Wifi Antenna
,2.4G Omni Directional Wifi Antenna
,16x250mm Wifi Antenna
Frequency:
2400-2500MHz
VSWR:
<1.5
Peak Gain:
4.5dBi
Impedance:
50
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500MHz |
| Impedance | 50 Ohm |
| S.W.R. | <1.5 |
| Antenna Gain | 4.5dBi |
| Efficiency | ≈85% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 35°±3° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | Φ16*250mm |
| Weight | 0.1Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 2400.0 | 2410.0 | 2420.0 | 2430.0 | 2440.0 | 2450.0 | 2460.0 | 2470.0 | 2480.0 | 2490.0 | 2500.0 |
| Gain (dBi) | 4.12 | 4.05 | 3.96 | 4.00 | 4.17 | 4.30 | 4.32 | 4.19 | 4.08 | 4.18 | 4.26 |
| Efficiency (%) | 88.82 | 86.49 | 83.27 | 81.93 | 84.80 | 88.15 | 88.72 | 85.21 | 83.16 | 84.81 | 87.48 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz | |
|
|
| 2450MHz | |
|
|
| 2500MHz | |
|
|
