Waterproof IP67 Fiberglass Outdoor Omnidirectional Antenna 0-6000MHz 2dBi 38x400

Name: Waterproof IP67 Fiberglass Outdoor Omnidirectional Antenna 0-6000MHz 2dBi 38x400
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10138-A
Availability: InStock

Product Details

Place of Origin: CHina

Brand Name: Lian Zhao

Model Number: LZANT-10138-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  Waterproof IP67 Omnidirectional Antenna, 2dBi Omnidirectional Antenna, 0-6000MHz Omnidirectional Antenna


Frequency:	0-6000MHz	VSWR:	<2
Gain:	2dBi	Impedance:	50 OHM
Connector:	N Connector

Frequency:	0-6000MHz
VSWR:	<2
Gain:	2dBi
Impedance:	50 OHM
Connector:	N Connector

Description

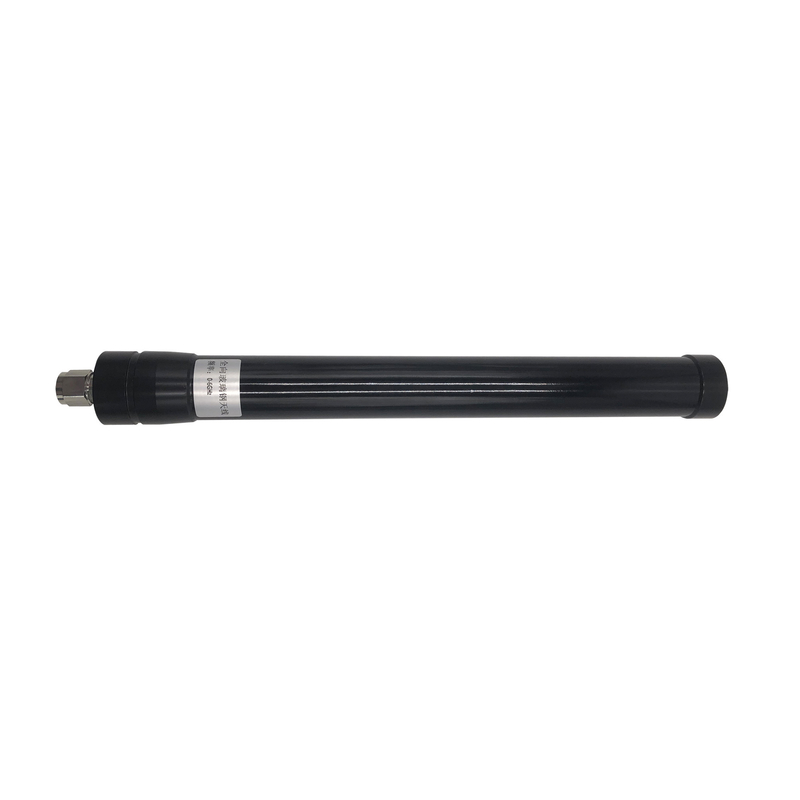

Waterproof IP67 Fiberglass Outdoor Omnidirectional Antenna 0-6000MHz 2dBi 38x400

A. Electrical Characteristics
Frequency	0-6000MHz
Impedance	50 Ohm
S.W.R.	<2
Gain	2dBi
Efficiency	≈33%
Horizontal Beamwidth	360°
Polarization	Linear
Max Power	100W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	Φ*38400mm**
Weight	0.585Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

Antenna - S Parameter Test Data

VSWR

Waterproof IP67 Fiberglass Outdoor Omnidirectional Antenna 0-6000MHz 2dBi 38x400 0

2.2 Total Efficiency & Gain:

Frequency (MHz)	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700	1800	1900
Gain (dBi)	-1.49	-2.17	-4.10	-1.63	-2.69	0.14	-1.70	-0.04	0.01	0.90	1.21	1.62	0.63	0.56	0.97	-0.01
Efficiency (%)	43.90	35.65	21.96	34.20	31.72	39.11	33.33	40.01	41.58	48.41	47.24	44.65	44.99	38.32	39.03	39.01

Frequency (MHz)	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3100	3200	3300	3400	3500
Gain (dBi)	0.87	0.95	0.41	0.40	0.52	-0.31	0.97	1.03	0.47	-0.38	0.22	0.52	0.74	2.11	0.82	2.13
Efficiency (%)	41.71	39.48	37.03	38.41	40.21	34.81	32.26	35.50	35.66	38.85	30.37	32.73	32.94	34.52	39.81	37.94

Frequency (MHz)	3600	3700	3800	3900	4000	4100	4200	4300	4400	4500	4600	4700	4800	4900	5000	5100
Gain (dBi)	1.20	0.70	0.39	0.66	0.60	1.06	0.54	1.54	1.76	1.17	0.38	0.19	-0.53	-1.46	-0.84	-1.71
Efficiency (%)	36.69	39.28	43.29	42.16	41.71	40.54	40.80	40.61	43.72	39.93	35.09	34.68	34.50	34.35	30.68	27.72

Frequency (MHz)	5200	5300	5400	5500	5600	5700	5800	5900	6000	6100	6200	6300	6400	6500	6600	6700
Gain (dBi)	-2.39	-1.88	-2.39	-3.09	-2.29	-2.22	-3.34	-3.13	-2.43	-1.46	-0.87	-1.37	-1.42	-1.99	-2.32	-2.52
Efficiency (%)	22.63	24.19	22.03	20.79	22.02	23.44	23.20	23.90	23.09	24.74	26.66	30.58	31.11	29.03	25.55	23.38

Frequency (MHz)	6800	6900	7000	7100	7200	7300	7400	7500	7600	7700	7800	7900	8000	8100	8200	8300
Gain (dBi)	-2.06	-1.88	-2.33	-2.94	-2.45	-1.48	-1.49	-1.60	-1.56	-0.76	-0.73	-0.30	-0.56	-0.44	-0.90	-0.66
Efficiency (%)	26.04	24.52	21.25	22.07	23.32	24.66	25.98	25.16	23.87	26.15	27.43	26.55	26.69	31.61	30.14	28.77
