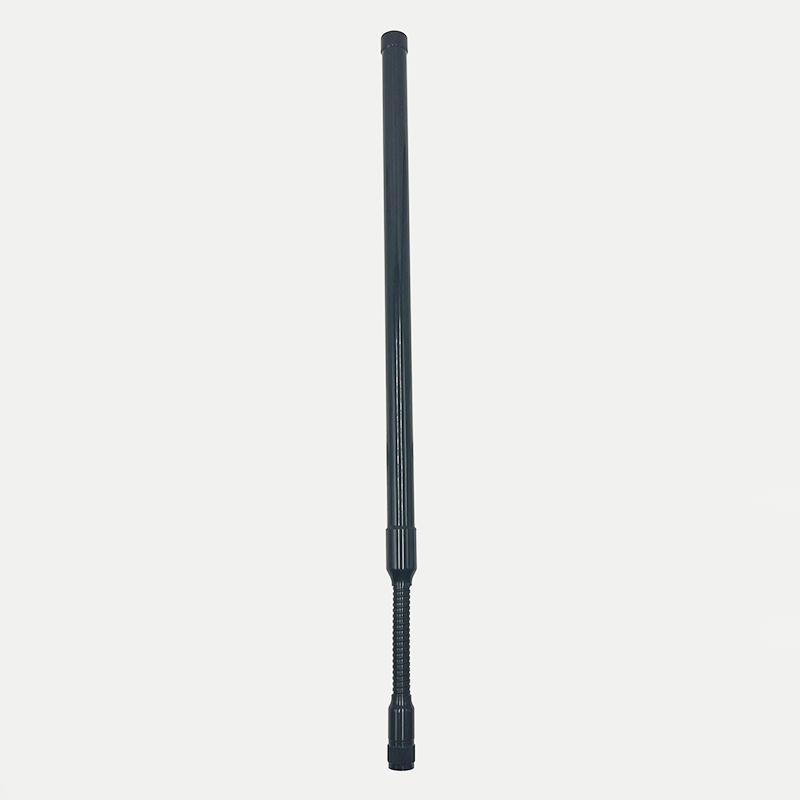

6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm

6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-11909-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

6dBi SMA male omnidirectional antenna

,

2300-2700MHz outdoor waterproof antenna

,

16x440mm SMA male antenna

Frequency:
2300-2700MHz
VSWR:
<2.0
Peak Gain:
6dBi
Impedance:
50
Frequency:
2300-2700MHz
VSWR:
<2.0
Peak Gain:
6dBi
Impedance:
50
Description
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm

1. Specification

A. Electrical Characteristics

Frequency 2300-2700MHz
VSWR < 2.0
Efficiency ≈74%
Peak Gain 6dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 20±3°
T90(H) roundness ±1
Max Power 50W
B. Material & Mechanical
Connector Type N-J
Dimension Φ16*440±3mm
Weight 0.16Kg
Radome material Fiberglass (Black)

C. Environmental

Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR
6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 0

2.2  Total Efficiency & Gain:

Frequency(MHz) Gain(dBi) Efficiency(%)
2300 5.1 73.0
2350 5.3 74.0
2400 5.7 75.7
2450 5.9 76.8
2500 5.9 77.7
2550 5.4 69.1
2600 5.6 71.1
2650 5.7 76.7
2700 5.3 69.8
2.3 Radiation Pattern



  3D 2D-Horizontal 2D-Vertical
2300MHz 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 1 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 2 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 3
2500MHz 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 4 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 5 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 6
2700MHz 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 7 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 8 6dBi SMA Male Antenna 2300-2700MHz Omnidirectional 16x440mm 9
