5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm

Name: 5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-11859-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-11859-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              5.8G omnidirectional WIFI antenna, dual-polarization outdoor WIFI antenna, waterproof high-gain 11dBi antenna


Frequency:	4900-5900MHz	VSWR:	<2.5
Peak Gain:	11dBi	Impedance:	50

Frequency:	4900-5900MHz
VSWR:	<2.5
Peak Gain:	11dBi
Impedance:	50

Description

5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm

1. Specification

A. Electrical Characteristics
Frequency		4900-5900MHz
VSWR		< 2.5
Efficiency		≈56%
Peak Gain		11dBi
Impedance		50 Ohm
Polarization		H+V
Horizontal Beamwidth		360°
Vertical Beamwidth		6-9°
T90(H) roundness		±4
Max Power		50W
B. Material & Mechanical

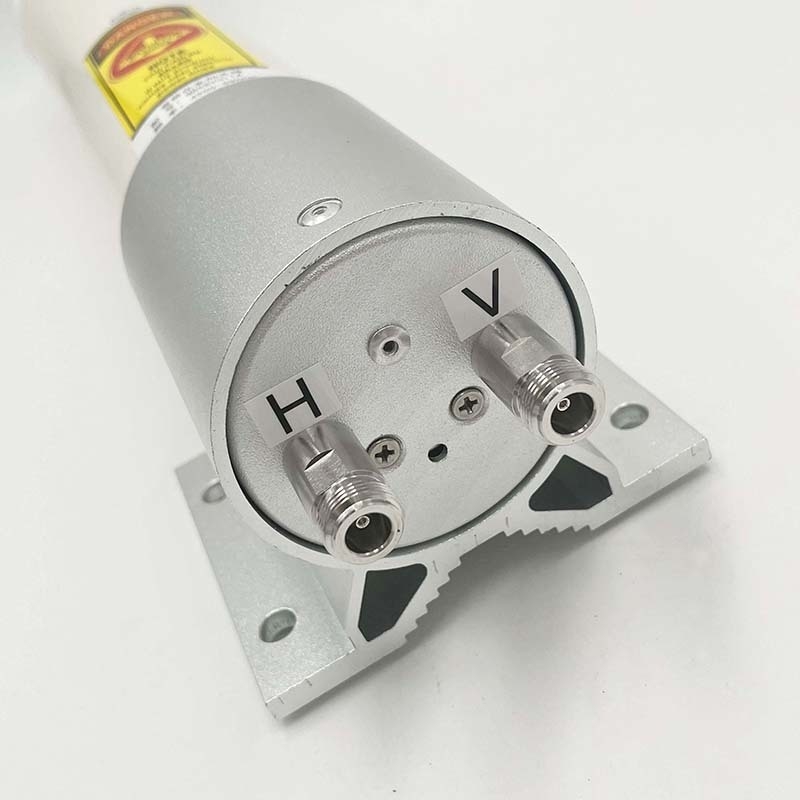

Connector Type	N-K*2
Dimension	Φ77*465±5mm
Weight	1.9Kg
Radome material	PVC(White)
C. Environmental
Operation Temperature	- 45˚C ~ +85 ˚C
Storage Temperature	- 45˚C ~ +85 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	Dc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR
5.8G 4900-5900M 11dBi dual-polarization omnidirectional WIFI antenna 77x465mm 0

2.2 Total Efficiency & Gain:

Port 1(H)			Port 2(V)
Frequency (MHz)	Gain (dBi)	Efficiency (%)	Frequency (MHz)	Gain (dBi)	Efficiency (%)
4900	9.3	51.0	4900	7.3	46.1
5000	9.4	53.9	5000	8.5	57.7
5100	8.5	50.3	5100	8.2	53.3
5200	9.7	53.7	5200	8.8	57.9
5300	9.6	59.3	5300	9.4	61.5
5400	10.4	64.1	5400	9.0	64.6
5500	11.2	67.3	5500	9.7	70.9
5600	10.8	57.0	5600	8.5	57.6
5700	11.1	57.0	5700	8.8	51.0
5800	9.7	46.6	5800	9.9	58.4
5900	11.0	59.4	5900	9.3	52.2
